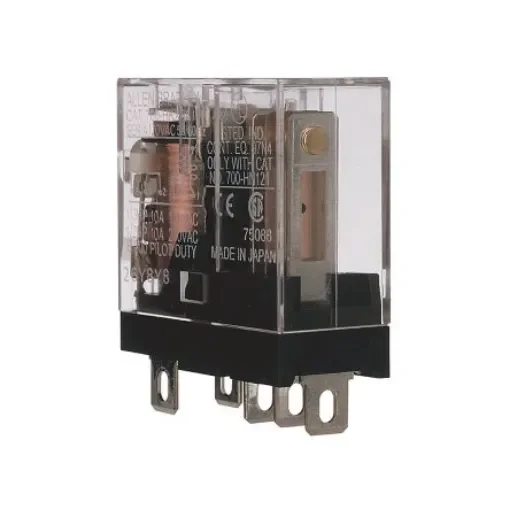

Allen Bradley Plug In Non-Latching Relay, 24V dc Coil, 8A Switching Current, DPDT - 700-HKX2Z24-3-4

Coil Voltage = 24V dc
Contact Configuration = DPDT
Mounting Type = Plug In
Switching Current = 8A
Number of Poles = 2
Coil Resistance = 1200 O
Coil Power = 500mW
Isolation Coil To Contact = 4kV

The Rockwell Automation 700-HKX general purpose slim line relay has 24 V coil voltage. It has DPDT contact configuration.Coil voltage 24 V Plug-in blade-style terminals (2.5 x 0.5 mm) Retainer clip with sockets Standard ON/OFF flag indicator Relay faceplate accepts optional Bulletin1492 snap-in markers Choice of standard silver/nickel contacts or silver/nickel with gold plated contacts
