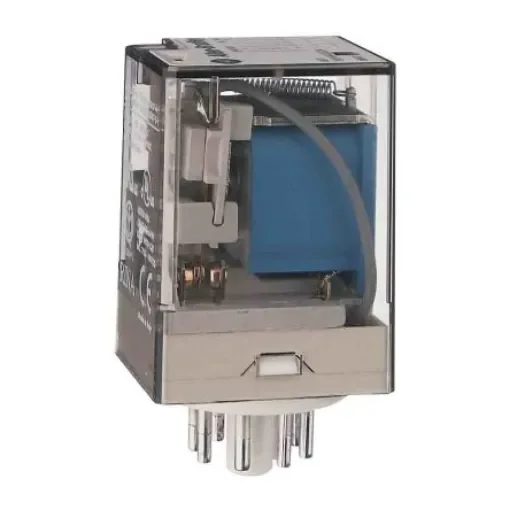

Allen Bradley Plug In Non-Latching Relay, 12V ac Coil, 10A Switching Current, DPDT - 700-HA32A12
Reliable 12V AC non-latching relay with 10A switching current and DPDT configuration.
Manufacturer part number: 700-HA32A12
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 12V ac
Contact Configuration = DPDT
Mounting Type = Plug In
Switching Current = 10A
Number of Poles = 2
Coil Resistance = 19 O
Coil Power = 2W
Isolation Coil To Contact = 2kV
The Rockwell Automation series 700-HA general purpose tube base relays. It has a 10A current .Contact configuration is DPDT, and coil voltage is 12Vac.Pin-style terminals Standard ON or OFF flag indicator Electrical schematic on face Clear cover for visual inspection Optional push-to-test and manual override Optional LED
