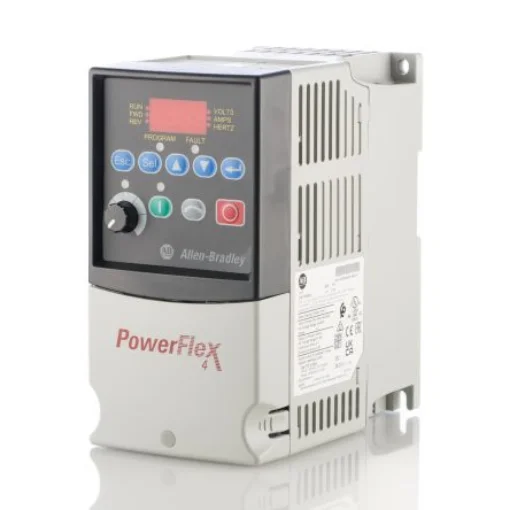

Allen Bradley Inverter Drive, 0.75 kW, 3 Phase, 400 V ac, 2.3 A, PowerFlex 4 Series - 22A-D2P3N104

Power Rating = 0.75 kW
Phase = 3
Supply Voltage = 400 V ac
Current Rating = 2.3 A
For Use With = AC Motor, Fans, Pumps, Conveyor
Field Bus Communication Type = ModBus
IP Rating = IP20
Output Frequency = 240Hz
STO = No
Control Panel = Yes
Overall Length = 152mm

Allen Bradley PowerFlex 4 Inverter Drive. For a compact inverter drive that provides powerful and precise motor speed control, look no further than the PowerFlex 4 AC drives by Allen Bradley. These PowerFlex devices have a space-saving design and can be DIN rail or panel mounted. It is the smallest member of the PowerFlex Variable Frequency Drive family and is designed for optimal flexibility and ease-of-use. It offers an economical alternative for speed control of applications such as pumps, conveyors, fans, machine tools, and material handling systems. PowerFlex 4 devices are available in power ratings from 0.2 to 1.5kW (single phase) and 0.37 to 3.7 kW (3 phase) in voltage classes of 230 and 400 volts. They offer V/Hz control, slip compensation, RS-485 communication, and Auto Restart and Flying Start functions. Integral dynamic brake resistor is available on ratings 0.75kW and above. Features and Benefits:. • Simplified start-up due to keypad control keys and potentiometer which are active out of the box • Can be DIN rail or panel mounted for easy installation and application versatility • Efficient Zero Stacking allows the mounting of drives side by side with no air gap to save valuable panel space • Built-in keypad features a 4 digit display and 10 additional LED indicators for fast, easy status indication • Robust overload protection: 150% for 60 seconds, 200% for 3 seconds • Basic Program Group contains 10 most common application parameters to ensure quick and simple programming • Integral EMC filtering on single phase drives to meet EN55011 standard
