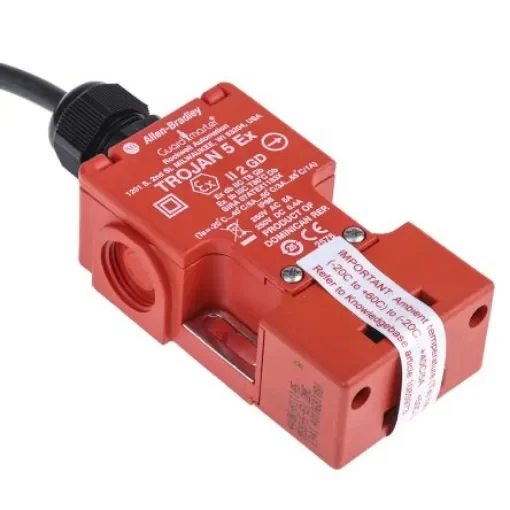

Allen Bradley Guardmaster ATEX 440K Safety Interlock Switch, 2NC, Keyed Actuator Included, Glass Filled PBT - 440K-H11145

Lock Style = Keyed
Normal State Configuration = 2NC
Lock Type = Interlock
Actuator Included = Yes
Safety Contacts = 2NC
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = M20
Housing Material = Glass Filled PBT
Range = Trojan 5-EX
IP Rating = IP67
Hazardous Area Certification = ATEX
Number of Head Directions = 4
Series = 440K
Maximum Current = 2 A, 6A

BS 5304, VDE 0660, IEC 337. ll 2 G EEx d llC T6. PTB 00 ATEX 10. Trojan 5, Hazardous Area. The Trojan Ex guard interlock switch is designed for potentially explosive atmospheres. It retains the safety features and operating principles of the conventional Trojan 5 Incorporates a sealed flameproof contact block, making it suitable for use in zone 1 and 2 environments normally found in chemical/petrochemical, powder, pressurised filling and gas/oil processing industries. Classification EExd IIcT6 Contact Rating; 1 A (500 V); 2 A (250 V); 5A (100 Vac Max) 2m long potted leads (4 x 0.75mm ;sup>2 ;/sup>) Supplied with actuator
