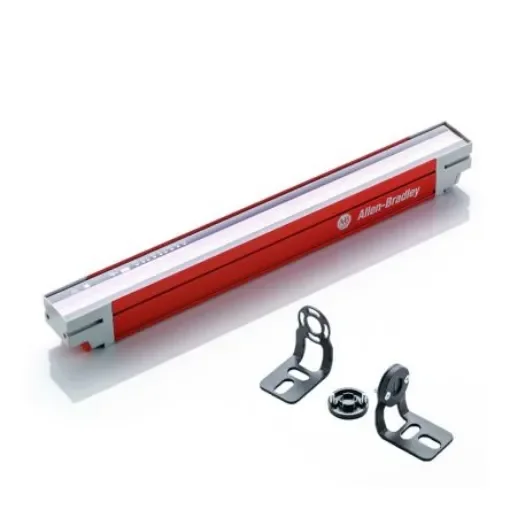

Allen Bradley Guardmaster 450L-E Series GuardShield Light Curtain Transceiver, 30mm Resolution - 450L-E4HL1200YD

Range = GuardShield
Series = 450L-E
Beam Resolution = 30mm
Component Type = Transceiver
SIL IEC 61508 = SIL 3
PL EN ISO 13849-1 = e
Protective Height = 1200mm
Minimum Scanning Distance = 0.9m
Maximum Scanning Distance = 16.2m
Maximum Response Time = 13 ms
Length = 30mm
Terminal Type = M12 Connectormm

Our Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality. The advanced 450L-E model features integrated laser alignment, cascading, blanking, and integrated muting.Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in module Features an active protective field that senses over the entire length of a transceiver Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft) Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.) Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
