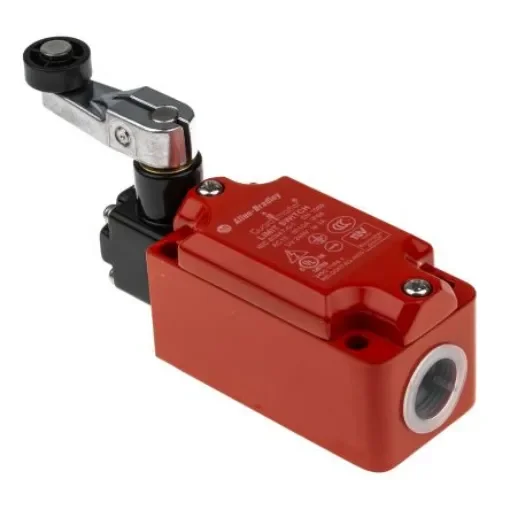

Allen Bradley Guardmaster 440P Series Short Lever Interlock Switch, NO/NC, IP66, SPST, Metal Housing - 440P-MSLS11B

Actuator Type = Short Lever
Pole and Throw Configuration = SPST
Normal State Configuration = NO/NC
IP Rating = IP66
Housing Material = Metal
Connection Type = M20
Series = 440P
Length = 133mm
Depth = 64mm
Mounting Orientation = HorizontalOperations

Allen Bradley Guardmaster Limit SwitchThe Allen Bradley Guardmaster 440P series slow action limit switch has 1NO/1NC contact configuration and a metal short lever. It has a screw connection and 1x M20 connection type. The operation of this limit switch is achieved by the sliding action of the guard or other moving objects, deflecting the plunger or lever. The senator range offers the option of rotating the head in 90° increments before installation to allow ease of mounting.Features and BenefitsContact rating is 1.2A/600V, 1.4A/500V, 3A/240V and 6A/120V Large selection of actuator heads Torque required to operate is 0.34Nm Positive operation, forced disconnection of contacts Snap-acting, slow make before break or slow break before make contact blocks Minimum mechanical life of 10000000 cyclesApplicationsMachine beds Crane arms Lifts & elevatorsCertificationsIP66 rated EN954-1 ISO13849-1 IEC/EN60204-1 NFPA79 EN1088 ISO14119 IEC/ EN60947-5-1 ANSI B11.19 AS4024.1 UL approved TUV approved CE certified CCC certified
