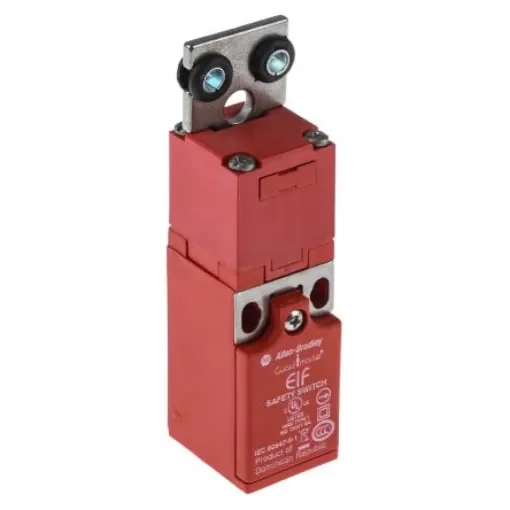

Allen Bradley Guardmaster 440K Safety Interlock Switch, 2NC, Keyed Actuator Included, Glass Filled PBT - 440K-E33080

Lock Style = Keyed
Normal State Configuration = 2NC
Actuator Included = Yes
Safety Contacts = 2NC
Maximum AC Voltage = 600V
Maximum DC Voltage = 600V
Connection Type = M16
Housing Material = Glass Filled PBT
Range = Elf
IP Rating = IP67
Number of Head Directions = 8
Series = 440K
Length = 75mm

Allen Bradley Guardmaster Safety Interlock SwitchThe Allen Bradley Guardmaster elf tongue (or key) safety interlock switch has 2NC contacts. It has a voltage rating of 600VAC/DC. This is designed to fit at the leading edge of sliding, hinged, or lift-off guards. Its unique miniature housing (only 75 x 25 x 29mm) makes it the smallest interlock in the industry. It is designed for smaller machines such as printers, copiers, or domestic machinery that couldnt use safety interlocks due to space restrictions. With its dual entry slots and rotatable head, the device can offer up to 8 different actuator entry options. The user can operate the switch by inserting a specially profiled stainless steel key that is permanently mounted to the guard door. The semi-flexible key allows the Elf to be used on small radii doors (60mm or 2.36in). Note: This safety device can be used with GuardLink, a new safety linking technology from Allen Bradley Guardmaster. GuardLink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the safety system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the GuardLink brochure.Features and BenefitsActuator type is flat Maximum current is 2.2A, 6A Ideal for small, lightweight guards The smallest interlock switch available Eight possible actuator entry points, easy to install Miniature tongue-operated safety interlock with 2 sets of contacts, particularly useful for light duty sliding and small radii hinged machine guards Dual entry and rotatable head allows up to 8 options for actuator entry position Forced guided contacts Conduit entry is 1 x M16 or quick-disconnect styleCertificationsEN954-1 ISO13849-1 IEC/EN60204-1 NFPA79, EN1088 ISO14119 IEC/ EN60947-5-1 ANSI B11.19 AS4024.1 IP67 rated UL approved CE certified
