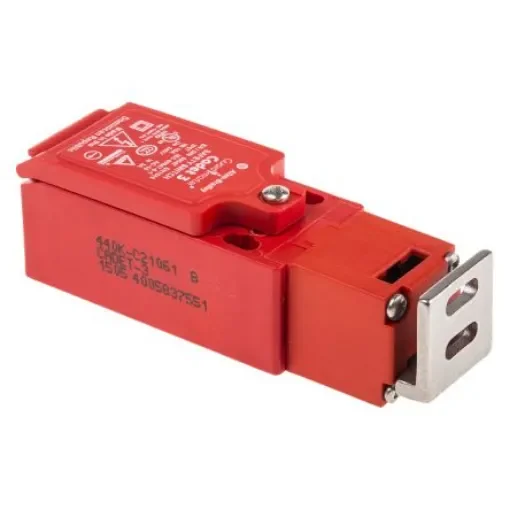

Allen Bradley Guardmaster 440K Safety Interlock Switch, 2NC/1NO, Keyed Actuator Included, Glass Filled PBT - 440K-C21067

Lock Style = Keyed
Actuator Included = Yes
Safety Contacts = 2NC
Maximum AC Voltage = 600V
Maximum DC Voltage = 24V
Connection Type = M12
Housing Material = Glass Filled PBT
Range = Cadet 3
IP Rating = IP67
Number of Head Directions = 8
Series = 440K
Maximum Current = 6A

Allen Bradley Guardmaster Cadet 3 Safety Interlock Switch. Improve protection for personnel and keep your machine guard door secure with the Cadet 3 Safety Interlock Switch by Allen Bradley Guardmaster. This compact and versatile interlock switch is tongue (or key) operated and is specifically designed to be fitted on the leading edge of hinged, sliding, and lift-off guard doors. It is perfectly suited for small, lightweight guards. The Cadet 3 is electrically linked to the machine ‘s control circuit so that that the power supply is disconnected and isolated when the barrier is released, providing critical protection by ensuring that personnel cannot access hazardous areas where machinery is running. The Cadet 3 features dual entry slots and a rotatable head, and it can offer up to eight different actuator entry points for superior application flexibility. It is easy to install and easy to mount due to the unique compact housing, which has industry standard DIN 50047 fixing centres. The switch can be operated by inserting a specially profiled stainless-steel key, which is permanently fixed to the guard door. This interlock device can also be used on small radius doors (60mm) with the semi flexible key. A blanking plug is supplied for the unused key entry. Compact tongue-operated interlock switch with 3 sets of contacts on a DIN 50047 footprint Dual entry and rotational head allows up to 8 options for actuator entry position Forced guided contacts - complies with EN 1088, IEC 947-5-1 Industry standard DIN 50047 fixing centres (20/22mm) Environmentally sealed to IP67: fully protected against ingress of dust and can withstand some immersion in water Resilient housing material comprised of glass filled PBT Dimensions: H30.4 x W31 x D90.5mm Optional Metal Actuator Guide (GD2 kit) for more demanding applications (stock no. ; 357-9341 357-9341 ). The Allen Bradley Guardmaster range of machine safety devices offers flexible, cost-effective solutions to boost efficiency and productivity in the workplace, and enhance safe access for your personnel. Standards. EN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, IEC/ EN60947-5-1, ANSI B11.19, AS4024.1. Approvals. CE Marked for all applicable directives, cULus, TUV, and CCC.
