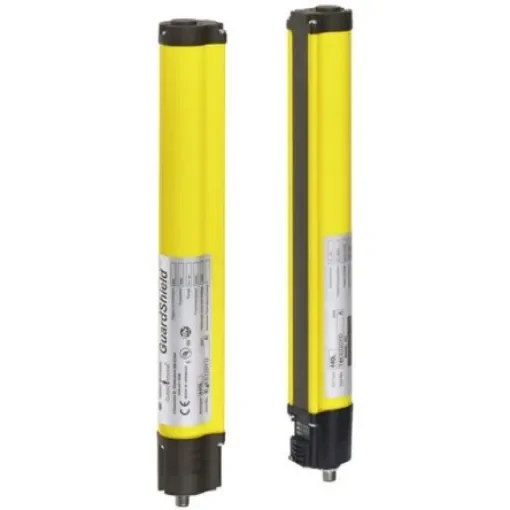

Allen Bradley Guardmaster 440 L Series GuardShield Light Curtain, Sender & Receiver, 16 Beam(s), 30mm Resolution - 440L-P4K0320YD

Series = 440 L
Beam Resolution = 30mm
Component Type = Receiver, Sender
SIL IEC 61508 = 3
Protective Height = 320mm
Minimum Scanning Distance = 0.3m
Maximum Scanning Distance = 16m
Maximum Response Time = 20 ms
Supply Voltage = 24 V dcmm
Dimensions = 42 x 52 x 472 mmmm

IEC/EN61496 parts 1 ; 2, Type 4 ESPE and EN954-1 Cat 4. UL; TUV. When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g ; 447-5587 447-5587 ). 440L, Type 4, Hand Protection. DIP switch selectable modes of operation located beneath a security door in the end caps offer features that include: Fixed blanking (teachable) Floating blanking (one or two beam) Beam coding start/restart interlock External device monitoring (EDM) Two safety solid state and one auxillary non-safety outputs Easy maintenance with the Quick Disconnect cables (4 pin for the sender, 8 pin for the receiver). Installation and operation of this safety device must be in strict accordance with accompanying operating instructions
