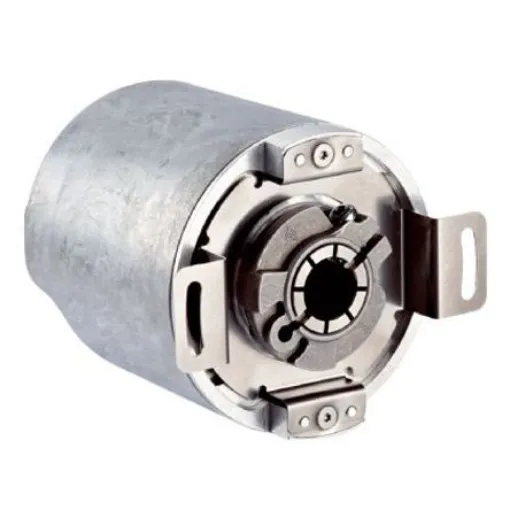

Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Hollow Type, 3/8in Shaft - 842E-MIP7BA
High-resolution absolute encoder with EtherNet/IP interface for reliable industrial applications.
Manufacturer part number: 842E-MIP7BA
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Pulses Per Revolution = 262144ppr
Maximum Revolutions = 6000rpm
Output Signal Type = Analogue, Binary
Shaft Type = Hollow
Shaft Diameter = 3/8in
Resolution = 18 Bit
Steps Per Revolution = 262144Steps
IP Rating = IP65, IP67
Interface = Ethernet
Overall Depth = 71.5mm
Minimum Operating Temperature = -30°C
Mounting Type = Hollow Shaft Flange
Current Rating = =200 mA
842E EtherNet/IP Absolute Encoders. Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy. Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications. Features and Benefits. EtherNet/IP interface. Simple and fast set up. Single-turn 18-bit resolution or multi-turn 30-bit resolution. Embedded switch. Device Level Ring (DLR). Revolution divisor. Solid and blind hollow shaft options. M12 Connectors. Status indication LEDs. Hardware/software IP address setting. IP67 Rated
