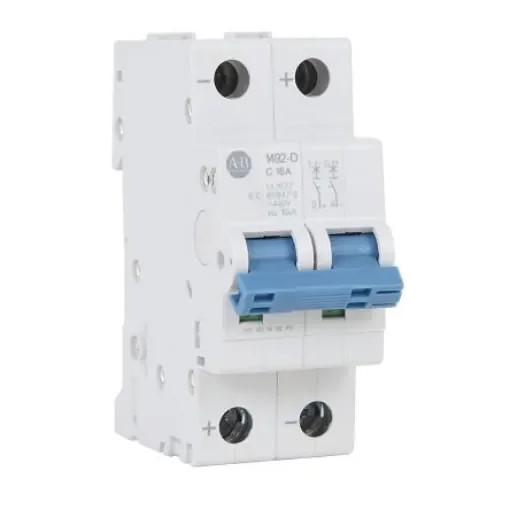

Allen Bradley 1492-D2 1492-D MCB, 2P, 16A Curve C, 10 kA Breaking Capacity - 1492-D2C160

Number of Poles = 2
Tripping Characteristics = Type C
Breaking Capacity at Maximum Voltage Rating = 10 kA
Series = 1492-D
Circuit Breaker Type = MCB
Mounting Style = DIN Rail Mount
Depth = 69mm
Model Number = 1492-D2C160

The Rockwell Automation 1492-D series miniature circuit breakers provide overcurrent and short circuit protection for higher voltage DC circuits. It has two pole and current rating of 16 may be used with UL 508 Listed bus bars for convenience in panel assembly, a wide range of left-, right- and space saving bottom-mount accessories, and lock out attachments for safety during maintenance.Dual terminals provide a more secure connection of up to four wires, or two wires and a bus bar Existing installations can be easily upgraded to include an auxiliary using the bottom mounted auxiliary contact options, which require no DIN Rail space Installation of up to six accessories on the same circuit breaker Superior shock and vibration resistance to prevent nuisance tripping Terminal design helps prevent wiring misses by directing wires into the terminal openings, even while tightening RoHS compliant and fully-recyclable device
