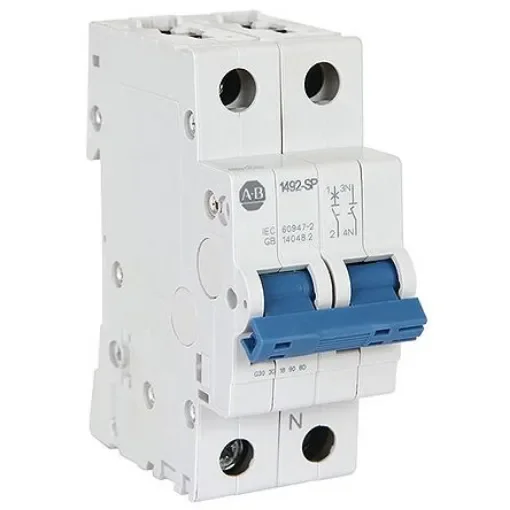

Allen Bradley 1492 1492-SPM MCB, 2P, 20A Curve B, 277V AC, 96V DC, 10 kA Breaking Capacity - 1492-SPM2B200

Number of Poles = 2
Current Rating = 20A
Tripping Characteristics = Type B
Rated AC Voltage = 277 V, 480V
Rated DC Voltage = 96V
Breaking Capacity at Maximum Voltage Rating = 10 kA
Range = 1492
Series = 1492-SPM
Circuit Breaker Type = MCB
Length = 35mm
Mounting Style = DIN Rail Mount
Depth = 88mm
Application = General Purpose

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B. The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application. The 1492-SPM series of MCB ‘s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB ‘s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance. A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB ‘s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications. Features and Benefits:. • Easy and fast installation via DIN rail mounting • Instantaneous break time • Available in 1, 2 or 3 pole versions • Thermal-magnetic tripping mechanism • Clear visibility of contact state due to indicator window: red for closed, green for open • Environmentally friendly - RohS compliant and fully recyclable • Screw Terminals • Can function in extreme ambient conditions due to 40 °C (104 °F) calibration temperature. Certifications:. UL Recognised CSA Certified CE Marked CCC Certified VDE Certified RoHS Compliant. Standards:. UL 1077 CSA C22.2 No. 235 EN 60947-2 GB 14048.2
