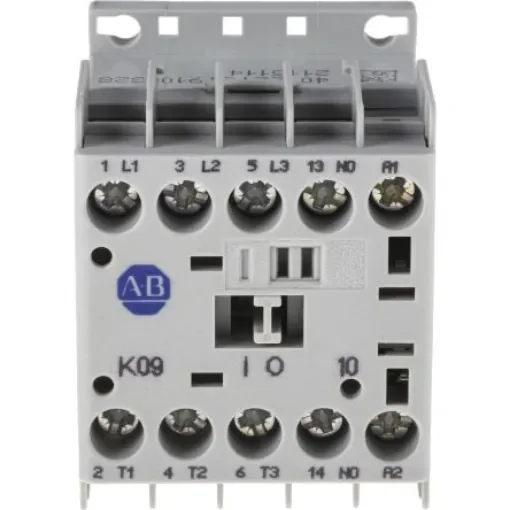

Allen Bradley 100 Series 100K Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac - 100-K09DJ10

Allen Bradley 100-K Miniature Contactors. The Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe, and efficient switching capabilities for your motor control system, giving you maximum performance in a small package. These miniature units have less panel depth requirements and are shallower than standard IEC contactors. They are available with several contact ratings and AC or DC operating coils. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately. These cost-saving contactors are rated up to 690V and have 3 Poles plus 1 Auxiliary contact. The dimensions are: (H) 50 x (W) 45 x (D) 53mm. These contactors have mechanically linked performance between the main contacts and internal aux contacts, which allows status feedback if contact weld occurs. Mirror contact prevents any status condition if a NO pole welds. Features and Benefits:. Compact size, allowing broader application use Choice of full-voltage non-reversing and reversing contactors AC and DC have the same dimensions IP2X Finger Protection for improved safety Optional integrated surge suppressor Fully compatible with Bulletin 193-K bimetallic overload relay Mechanically linked contacts to IEC 60947-5-1 on base unit Mirror contacts to IEC 60947-4-1 throughout. Certifications:. CE Marked cULus Listed (File No. E41850, Guide NLDX, NLDX7) CCC Suitable for use with IE3 Motors (IEC 60034-30)
