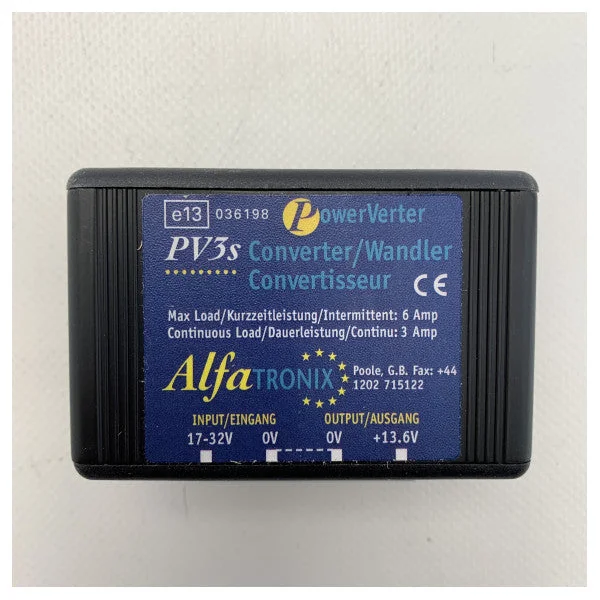

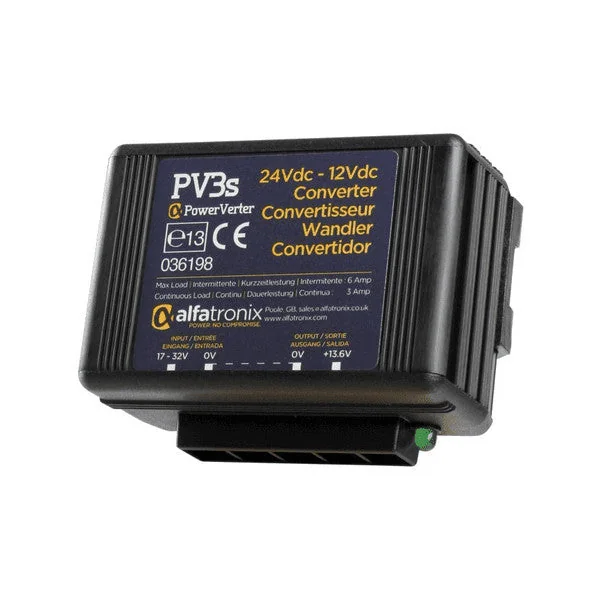

AlfaTronix PV3S DC-DC Converter 24 to 12V | 3A
The Alfatronix PV3S is a non-isolated DC-DC converter that converts 24V DC voltage into 12V DC voltage with a continuous power output of 3A. This converter is designed to power 12V equipment on 24V systems commonly found in diesel vehicles, ships, and aircraft.
Features:
-
Non-isolated DC-DC converter: This means that the input and output connections are electrically connected.
-
24V DC input voltage: Suitable for use with 24V batteries in vehicles, ships, and aircraft.
-
12V DC output voltage: Powers 12V equipment such as radios, GPS navigation systems, and lighting.
-
Continuous power of 3A: Can power devices with a maximum power consumption of 36W.
-
High efficiency: Low power loss for optimal performance and minimal heat generation.
-
Robust and compact housing: Made from anodised aluminium and polycarbonate for durability and protection.
-
Overcurrent and overheating protection: Extends the lifespan of the converter and protects connected devices.
-
Transient voltage protection: Protects against sudden voltage spikes that could damage the converter.
-
LED output indication: Provides visual confirmation that the converter is active and supplying power.
-
6.3 mm push-on connectors: Simple and reliable connection for cables.
Specifications:
-
Input voltage: 17V DC to 32V DC
-
Output voltage: 13.6V DC ± 15%
