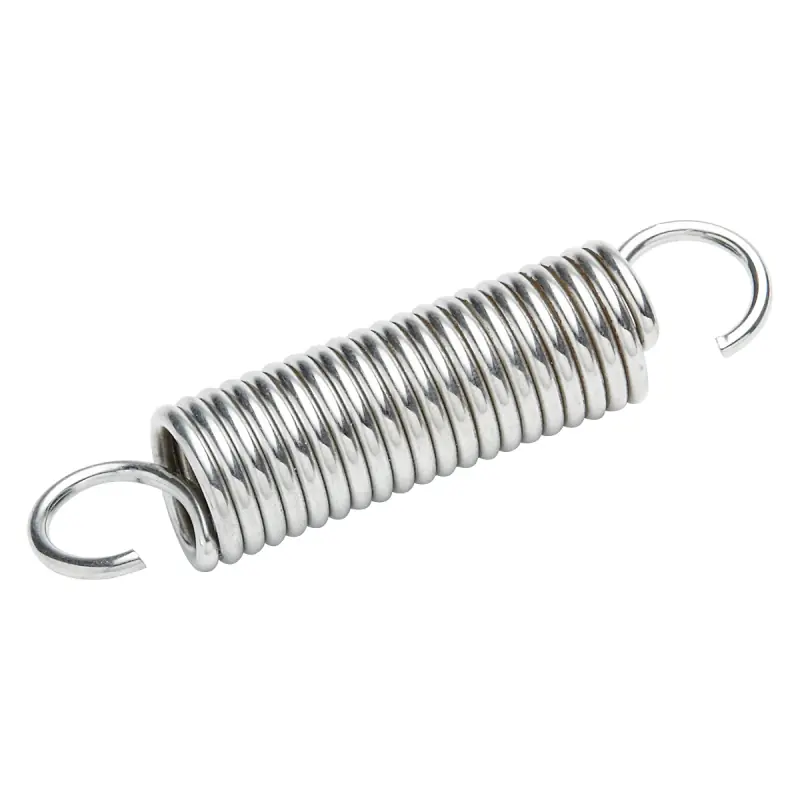

This stainless steel tension spring is designed to provide reliable performance in various applications requiring tensile force resistance.
- Material: Manufactured from stainless steel, ensuring high corrosion resistance and durability.
- Design: Features a helical coil structure that reacts to axial forces, extending under tension and returning to its original shape when the force is removed.
Technical Specifications
- Wire Diameter (d): 1.20 mm
- Outer Diameter (Dm): 7.30 mm
- Free Length (Lo): 30.20 mm
- Spring Constant (fn): 15.80 N/mm
- Maximum Load (Fn): 52.30 N
- Spring Index (R): 2.82
Materials
- Wire Material: Stainless steel wire conforming to EN-10270-3-SH, alloy number 1.4310.
Dimensions
- Length: 30.20 mm
- Outer Diameter: 7.30 mm
- Wire Diameter: 1.20 mm
Compatibility Information
This tension spring is suitable for applications requiring a spring with the specified dimensions and material properties. It is commonly used in various mechanical systems where tension springs are needed.
Additional Details
- Tolerances: Manufactured in accordance with DIN 2097-2 standards.
- Surface Treatment: Standard finish; additional surface treatments may be available upon request.
