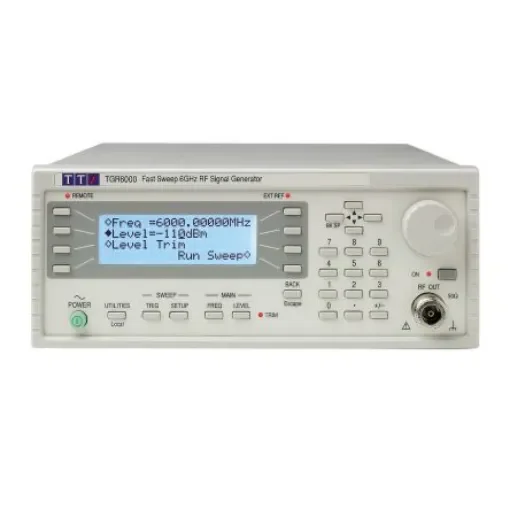

Aim-TTi TGR6000 RF Signal Generator, 10MHz min, 6GHz max

Model Number = TGR6000
Frequency Resolution = 10Hz
Maximum Frequency Range Sinewave = 6GHz
Minimum Frequency Range Sinewave = 10MHz
Time Base Accuracy = <±1ppm
Output Impedance = 50O
Interface Type = GPIB, LAN, RS232, USB

Aim-TTi RF Signal GeneratorThe Aim-TTi RF waveform generator is high tech, single-channel, RF signal generator. This device supports frequencies from 10MHz to 6GHz. It is a low-cost signal generator intended for carrier wave applications where modulation is not required. The generator is simple and intuitive to use. There is a provision to directly enter frequency and level from the keyboard in any units preferred. Alternatively, values can be changed in user-defined increments using the spin wheel or up/ down keys. The 4 line display has soft key functionality for setting up more complex functions such as sweep lists. Supplied with operating manual, driver software, power lead.Features and BenefitsAccuracy better than 1ppm over 15°C to 30°C Ageing better than 1ppm over 1 year The supply voltage ranging from 100VAC to 240VAC External frequency reference input Low phase noise and low leakage Fast stepping sweep with dwell times down to 10 millisecond List sweep of up to 1000 points of amplitude vs frequency User compensation tables for specific test set-ups Storage for 12 generator set-ups and 16 sweep lists Compact half-rack 2U casing uses minimum bench space Incorporates full remote control using USB, RS-232, GPIB and LAN (Ethernet) interfaces Significantly lower cost than other 6GHz generators 20 character x 4 row backlit alphanumeric LCDApplicationsTelecommunication Electronics laboratories Educational institutes Electronics designing Service and maintenanceCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
