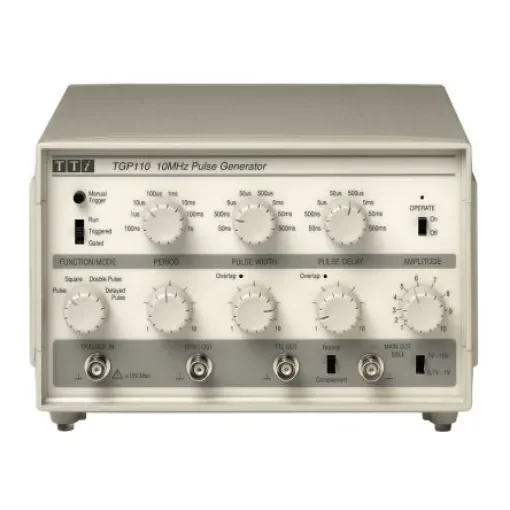

Aim-TTi TGP110 Pulse Generator, 0.1 Hz min, 10MHz max

Maximum Frequency = 10MHz
Minimum Frequency = 0.1 Hz
Maximum Pulse Width = 5s
Minimum Pulse Width = 50ns
Maximum Pulse Delay = 5s
Minimum Pulse Delay = 50ns
Adjustable Output Amplitude = Yes
Jitter = 0.1%
Rise - Fall Time = 15ns
Input Impedance = 10 kO
Dimensions = 230 x 220 x 140mm
Width = 220mm

Aim-TTi TGP110 Pulse Generator. The TGP110 is a dedicated pulse generator that operates in a quite different way from a function generator. It can generate pulses of a set width regardless of the repetition rate offering duty cycles which can extend down to 1 in 100 million. In addition to continuous operation, single or multiple pulses can be generated in response to trigger or gating signals with precisely defined timing relationships using the delay facility. 0.1Hz to 10MHz frequency range 50ns to 5s pulse width, independent of period Fully variable pulse delay, 50ns to 5s Square wave, double pulse and delayed pulses Free-run, gated and triggered modes Output variable 0.1V to 10V from 50O Complement switch, TTL and sync outputs
