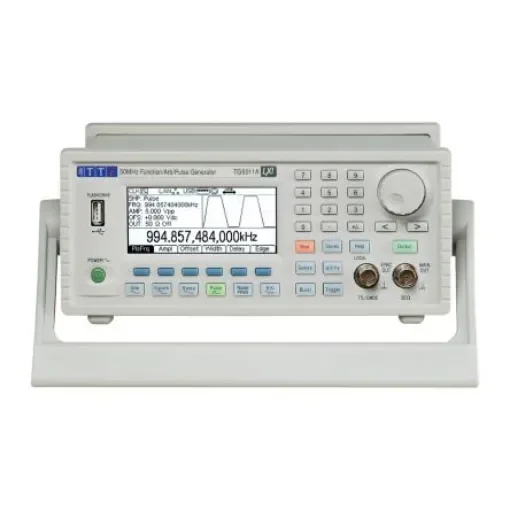

Aim-TTi TG5011A Function Generator, 1µHz Min, 50MHz Max, FM Modulation, Variable Sweep

Maximum Frequency Range Sinewave = 50MHz
Number of Channels = 1
Series = TGxA
Output Impedance = 50O
Minimum Frequency Range Sinewave = 1µHz
Variable Sweep = Yes
FM Modulation = Yes
Digital Frequency = Yes
Maximum Frequency Range Triangle/Saw = 1MHz
Minimum Frequency Range Triangle/Saw = 1µHz
Length = 270mm

Aim-TTi Advanced Single Channel Function/Arbitrary/Pulse Generators TG5011A, TG2511A. The Aim-TTi TG5011A and TG2511A are state-of-the-art single channel DDS-based function generators. The 50MHz TG5011A offers high bandwidth and sampling speed, which enables it to significantly outperform many generators in its price range. The 25MHz TG2511A incorporates a similar feature set while offering a still lower cost to users with lower frequency requirements. 0.001mHz to 50MHz (TG5011A) or25MHz (TG2511A) range, 14 digits or 1µHz resolution 20mV to 20V pk-pk output from 50O, available over the full frequency range - multi-function aux-out True pulse generator with variable delay and variable rise/fall Arbitrary waveforms of up to 128K points at up to 125MS/s Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic Waveform storage and file transfers using USB flash drives Large graphic LCD with simultaneous text and waveform display Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum, PRBS Waveform Manager Plus for Windows editing software included Programmable via USB and LAN (LXI) interfaces Storage for multiple instrument set-ups in non-volatile memory Compact half-rack 2U casing with protective buffers and handle
