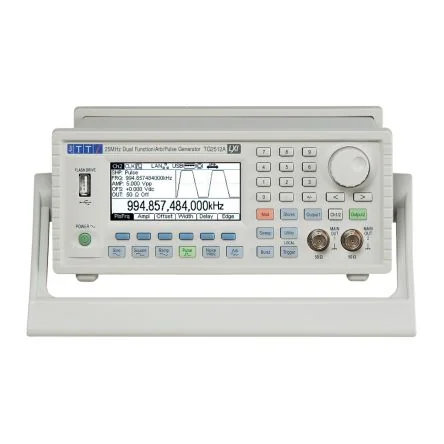

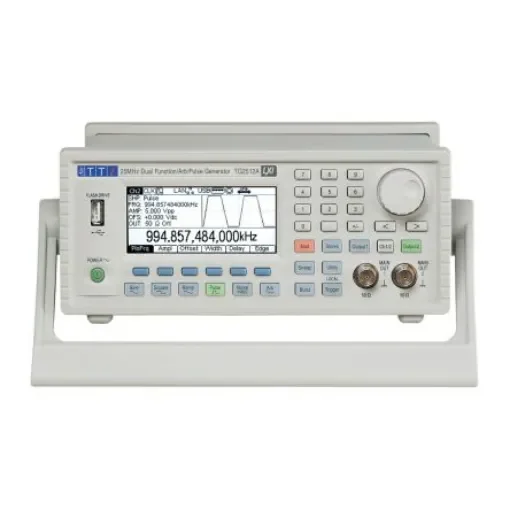

Aim-TTi TG2512A Function Generator, 1µHz Min, 25MHz Max, FM Modulation, Variable Sweep

Maximum Frequency Range Sinewave = 25MHz
Number of Channels = 2
Series = TGxA
Output Impedance = 50O
Minimum Frequency Range Sinewave = 1µHz
Variable Sweep = Yes
FM Modulation = Yes
Time Base Accuracy = 1ppm
Digital Frequency = Yes
Maximum Frequency Range Triangle/Saw = 500kHz
Minimum Frequency Range Triangle/Saw = 1µHz
Length = 295mm

Aim-TTi Advanced 2 Channel Function/Arbitrary/Pulse Generators TG5012A, TG2512A. The Aim-TTi TG5012A and TG2512A are 2-channel versions of the single channel TG5011A ( ; 800-3173 800-3173 ) and TG2511A ( ; 800-3177 800-3177 ). All of these instruments share the same features but the 2-channel versions also have multi-channel capabilities including coupling for frequency and/or level, full tracking and defined phase offset. The channels can be used as completely independent generators, representing excellent value for money compared with buying two generators. Two identical channels - independent or linked with coupled and tracking modes Selectable coupling of frequency (equal or offset), amplitude/dc offset Inter-channel phase offset of -360° to +360° with 0.1° resolution 0.001mHz to 50MHz (TG5012A) or 25MHz (TG2512A) range, 14 digits or 1µHz resolution 20mV to 20V pk-pk output from 50O, multi function aux. out True pulse generator with variable delay and variable rise/fall Arbitrary waveforms of up to 128K points at up to 125MS/s Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic, PRBS Waveform storage and file transfers using USB flash drives Large graphic LCD with simultaneous text and waveform display Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS Waveform Manager Plus for Windows software included Programmable via USB ; LAN (LXI) interfaces Storage for multiple instrument set-ups in non-volatile memory Compact half-rack 2U casing with protective buffers and handle
