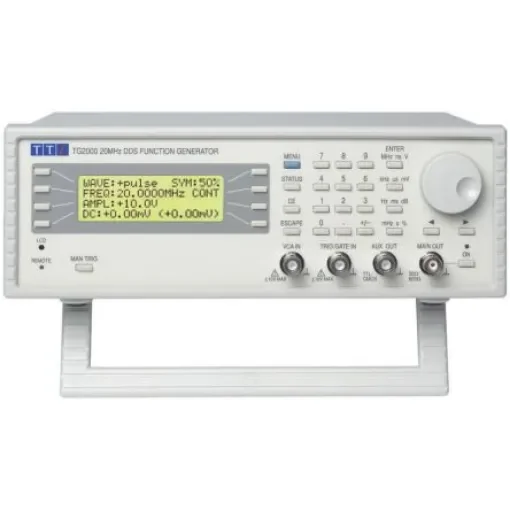

Aim-TTi TG 2000 Function Generator, 1mHz Min, 20MHz Max, FM Modulation, Variable Sweep - TG2000

Series = TG2000
Output Impedance = 50 O, 600 O
Minimum Frequency Range Sinewave = 1mHz
Variable Sweep = Yes
FM Modulation = Yes
Time Base Accuracy = ±10ppm
Digital Frequency = Yes
Maximum Frequency Range Triangle/Saw = 1MHz
Minimum Frequency Range Triangle/Saw = 1mHz
Internal Linear and Log Sweep = Yesmm

Complies with EN61010-1 and EN61326. Mains lead and full instructions. Aim-TTi TG1000 ; TG2000 DDS Function Generators, 10MHz ; 20MHz. The TG1000/2000 offers a high quality direct digital synthesis (DDS) function generator at a significantly lower price. DDS generates waveforms using a phase accumulator, look-up table and DAC. The accuracy/stability of the resulting waveform is related to that of the crystal master clock. When correctly engineered, the DDS generator offers not only exceptional accuracy and stability but also high spectral purity, low phase noise and excellent frequency agility. The TG2000 includes RS-232 and USB interfaces for remote control of all instrument functions and for remotely storing instrument set-ups. 6 digits or 1mHz setting resolution 1ppm stability and better than 10ppm absolute accuracy for one year Sine, square, triangle, positive pulse and negative pulse waveforms Internal sweep, linear or logarithmic, phase continuous, 0.1Hz to 20MHz Modulations modes of sweep, gated, AM, FSK and tone switching - built-in trigger generator 5mV to 20V pk-pk output from 50O or 600O; plus multi-function auxiliary output Storage for up to nine complete instrument set-ups in non-volatile memory
