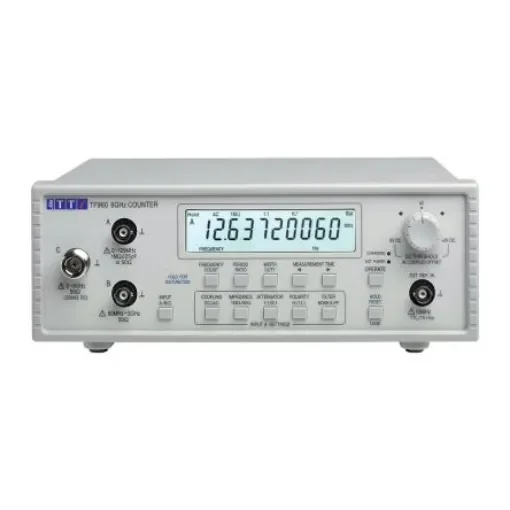

Aim-TTi TF960 Frequency Counter, 0.001 Hz Min, 6GHz Max, 10 Digit Resolution

Maximum Frequency = 6GHz
Minimum Frequency = 0.001 Hz
Resolution = 10 Digit
Pulse Width Resolution = 20ns
Attenuation = 1:1, 5:1
Maximum Internal Counter = 9999999999
Minimum Internal Counter = 1
Maximum Input Voltage = 30V
Input Impedance = 1 MO, 50 O
Measurement Time = 100s
Model Number p = TF960
Dimensions = 260 x 235 x 88mm
Width = 235mm

Aim-TTi TF960 - 6GHz Universal Frequency Counter. The Aim-TTi TF960 is a 6GHz bench/portable universal counter with USB. It uses a high quality temperature-compensated internal frequency reference (TCXO) which has a low aging rate and is stable to within ±1ppm over the full temperature range. The instrument's short warm-up time enables accurate measurements to be made even under portable battery-powered conditions. An External Reference input is provided and changeover from the internal timebase is automatic when an external reference standard is connected. For frequency, period and frequency ratio functions, the TF960 uses a reciprocal counting technique to provide high resolution at all frequencies. Eight significant digits of answer are produced in a 1 second measurement time, nine digits in 10s and ten digits in 100s, with a granularity of less than 2 counts in the least significant digit. Frequency, period, pulse width, frequency ratio, duty cycle and event counter modes DC to 6000MHz range, 0.001mHz resolution High impedance measurement up to 125 MHz AC or DC coupling, 1M/50Ohm selection, polarity invert Switchable attenuator, threshold control Noise filter for low frequency measurements Selectable measurement time; display hold function Large 10 digit display with full range of annunciators Internal rechargeable batteries for portable use USB interface provides full remote control and readback
