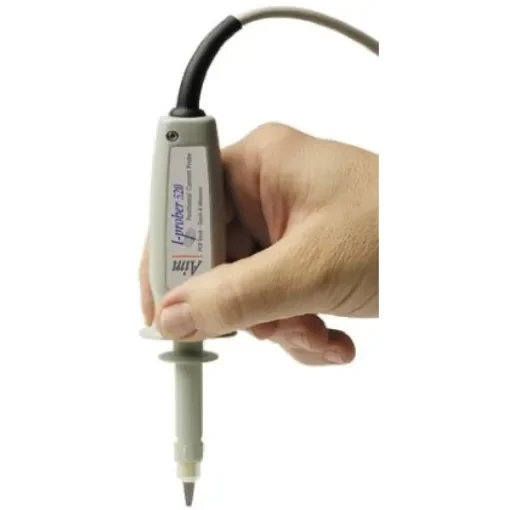

Aim-TTi I-prober 520 Oscilloscope Probe, Current Type, 5MHz - Iprober520

Probe Type = Current
Bandwidth = 5MHz
Model Number p = I-prober 520
Safety Category Level = CAT II
Safety Category Voltage = 300V
Current = 20A
Safety Category = CAT II 300V

Aim-TTI I-prober 520 Positional Current ProbeThe Aim-TTI I-prober 520 positional current probe has a current rating of 20A. It can observe and measure currents in PCB tracks and other conductors where conventional current probes cannot be used. This includes captive wires into components, the legs of integrated circuits, and PCB ground planes. Conventionally, you can only measure the current by either breaking the circuit to insert a shunt resistor or by surrounding the conductor by a loop of magnetic material as in a standard current probe. It enables currents, from DC up to 5MHz, and lets you observe and measure simply by placing its insulated tip onto the conductor. Supplied with: Control box, power supply, toroid assembly, fitted carrying case, and an operators manualFeatures and BenefitsCurrent measurement from isolated probing of conductor Patented micro fluxgate magnetometer technology Wide bandwidth of DC to 5MHz Low noise equivalent to less than 6mA rms Suitable for connection to any 1M input oscilloscope High accuracy general purpose H-field probe Convertible into closed magnetic circuit current probeApplicationsHigh voltage conductors High-temperature areas Confined and difficult to access spacesCertifications300V Cat II safety rated EN61326
