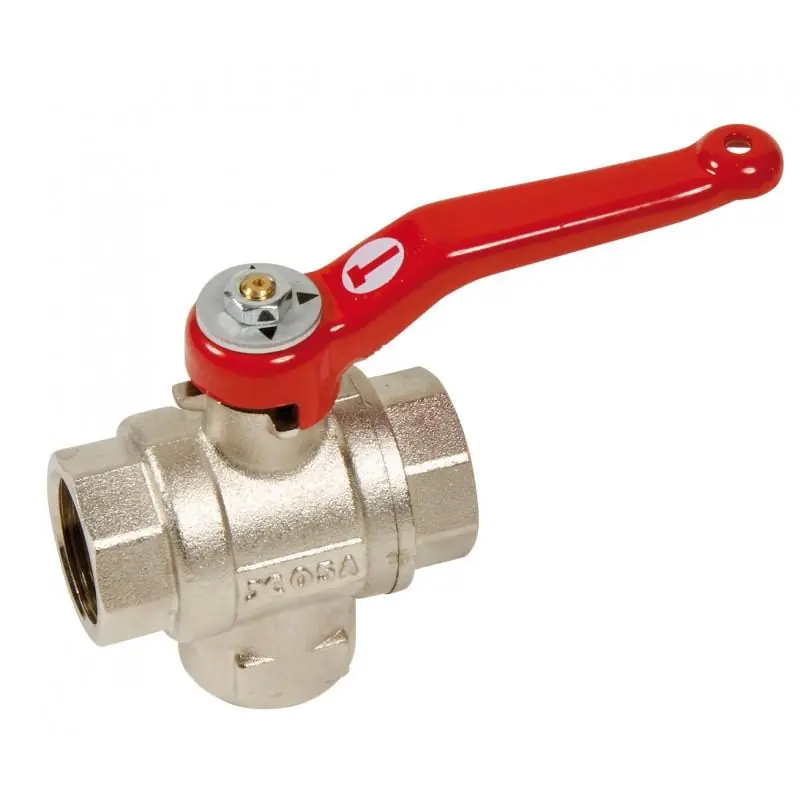

The Vertical T-Style 3-Way Brass Ball Valve is engineered for precise fluid control in various applications, including water, compressed air, and saturated steam systems. This valve is designed to operate efficiently under demanding conditions, ensuring durability and reliability.
- Versatile Application: Suitable for water, compressed air, and saturated steam systems.
- High Pressure Rating: Operates effectively up to 25 bars.
- Temperature Range: Functional between -10°C and +100°C.
- Durable Construction: Features a nickel-plated CW617N brass body and a hard chrome-plated CW614N brass sphere.
- Reliable Seals: Equipped with PTFE packing gland seat and FPM (Viton) O-Ring on the stem.
- User-Friendly Design: Comes with a red epoxy resin-coated DD13 EN1011 steel handle.
- Standardized Connections: Designed with BSP female threads for easy integration.
Technical Specifications
- Body Material: Nickel-plated CW617N brass.
- Sphere Material: Hard chrome-plated CW614N brass.
- Seals: PTFE packing gland seat; FPM (Viton) O-Ring on the stem.
- Handle: DD13 EN1011 steel with red epoxy resin coating.
- Connection Type: Female BSP threads.
- Pressure Rating: 25 bars.
- Temperature Range: -10°C to +100°C.
Dimensions
- Nominal Diameter: 3/8 inch.
- Passage: 10 mm.
- Pressure Rating: 25 bars.
Compatibility Information
This valve is compatible with water, compressed air, and saturated steam systems, making it suitable for a wide range of industrial and commercial applications.
