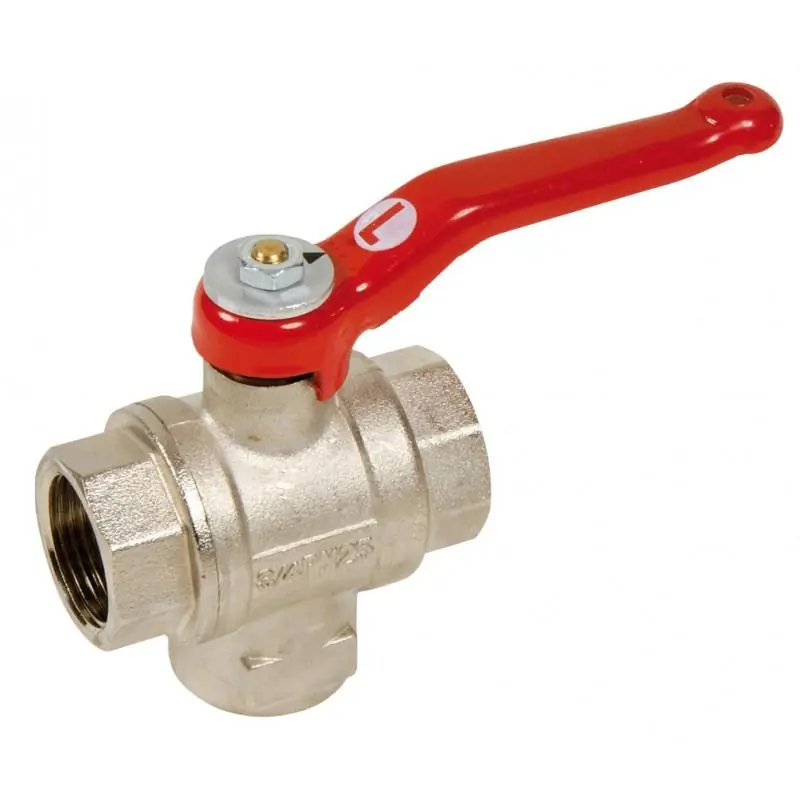

ADG Valve - 3-Way Vertical L-Port Brass Ball Valve - 103DL-12

Brand: ADG Valve
Efficiently control fluid flow with this durable 3-way brass ball valve featuring BSP female threads.
Manufacturer part number: 103DL-12
Vendor: Deal Marine
*
Availability: Out of stock
€21.09 incl tax
i h
  • Key Features:
    • Designed for controlling the flow of compatible fluids in various applications.
    • Vertical L-port configuration for efficient flow direction control.
    • Female BSP (British Standard Pipe) threaded connections for easy installation.
    • Red epoxy resin-coated steel handle for enhanced durability and visibility.
  • Technical Specifications:
    • Pressure Rating: 25 bars.
    • Temperature Range: -10°C to +100°C.
    • Body Material: Nickel-plated CW617N brass.
    • Ball Material: Hard chrome-plated CW614N brass.
    • Stem Seal: FPM (Viton) O-ring.
    • Gland Seal: PTFE packing gland seat.
    • Handle Material: DD13 EN1011 steel with red epoxy resin coating.
    • Connection Type: BSP cylindrical threads.
  • Materials:
    • Body: Nickel-plated CW617N brass.
    • Ball: Hard chrome-plated CW614N brass.
    • Stem Seal: FPM (Viton) O-ring.
    • Gland Seal: PTFE packing gland seat.
    • Handle: DD13 EN1011 steel with red epoxy resin coating.
  • Dimensions:
    • Nominal Diameter: 3/8 inch.
    • Passage: 10 mm.
    • Pressure Rating: 25 bars.
    • Reference: 103DL-12.
  • Compatibility Information:
    • Suitable for water, compressed air, and saturated steam applications.
    • Compatible with systems requiring BSP threaded connections.
  • Additional Details:
    • Complies with ACS (Attestation de Conformité Sanitaire) standards.
    • Available in various sizes, including 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", and 2".
