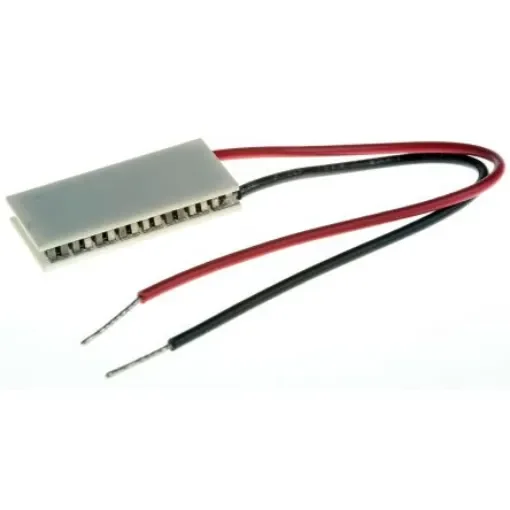

Adaptive Peltier Module, 10.4W, 2.2A, 7.6V, 12 x 25mm - ET-063-08-15-RS
Efficient thermoelectric cooler module with 10.4W capacity for effective heat management.
Manufacturer part number: ET-063-08-15-RS
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Maximum Cooling Capacity = 10.4W
Maximum Temperature Difference = +74K
Maximum Current = 2.2A
Maximum Voltage = 7.6V
Active Area = 12 x 25mm
Active Area Length = 12mm
Active Area Thickness = 3.8mm
Active Area Width = 25mm
Thermoelectric Cooler Modules, Adaptive. The Thermoelectric modules utilise the Peltier phenomenon principle to pump heat when voltage is applied. Effective cooling power from mW to a hundred of Watts Max hot side temperature Th = 90°C for best long term performance Modules can be bonded using heat sink bonder Applications in refrigeration and power generation Silicone sealed options
