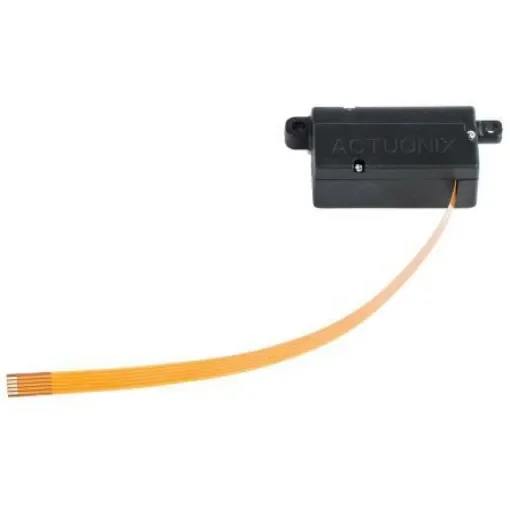

Actuonix Micro Linear Actuator, 20mm, 6V dc, 28mm/s - PQ12-30-6-S

Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 20mm
Input Voltage = 6V dc
Series = PQ12
Maximum Speed No Load = 28mm/s
Maximum Force Lifting = 18N
Duty Cycle = 20%
IP Rating = IP54
Overall Length Closed = 125mm
Control = S - Limit Switch

The PQ12 series are the smallest linear actuator that we offer. It weighs only 15g and features a stroke length of 20mm. The PQ12-P micro feedback actuators feature an internal potentiometer that can be used to provide position feedback. They do not have an internal controller or end-limit switches.Compact miniature size Precise position feedback Limit switches Simple control Low voltage Equal push/pull force Easy mounting Applications Robotics Consumer appliances Toys RC vehicles Automotive Industrial Automation
