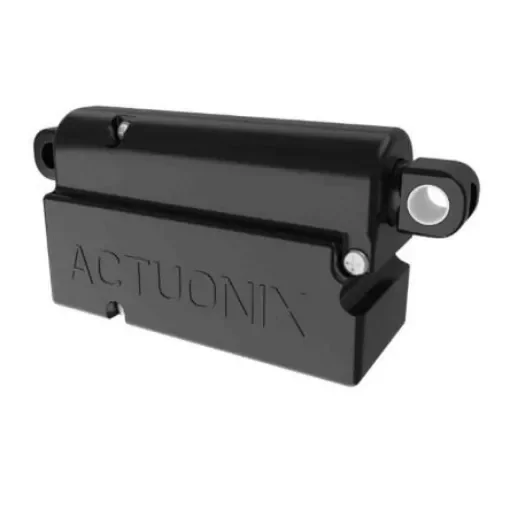

Actuonix Micro Linear Actuator, 20mm, 6V dc, 10mm/s - PQ12-100-6-P
Compact micro linear actuator with 20mm stroke and 6V DC for precise load control.
Manufacturer part number: PQ12-100-6-P
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 20mm
Input Voltage = 6V dc
Series = PQ12
Maximum Speed No Load = 10mm/s
Maximum Force Lifting = 50N
Duty Cycle = 20%
The Actuonix PQ12 series micro feedback actuator is designed to push or pull a load along its full stroke length. It features an internal potentiometer that can be used to provide position feedback. They do not have an internal controller or end-limit swi20mm stroke length Can be used as linear servo by using it with linear actuator control board
