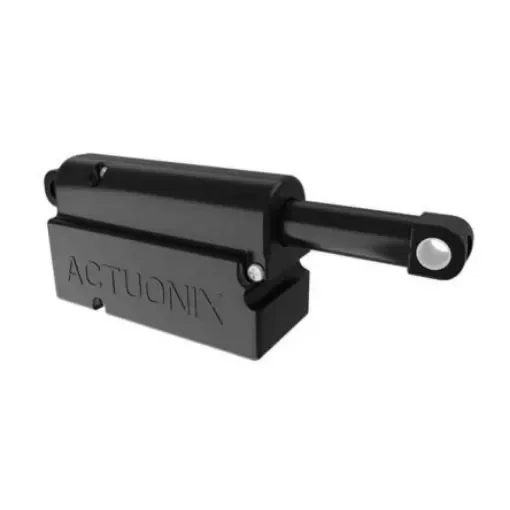

Actuonix Micro Linear Actuator, 20mm, 12V dc, 15mm/s - PQ12-63-12-S

Manufacturer: Actuonix

Compact micro linear actuator with 20mm stroke and 12V power for precise load control.

Manufacturer part number: PQ12-63-12-S

Vendor: YACHTNEEDS-RS

€157.58

Qty:

i h

Ships to: France

Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 20mm
Input Voltage = 12V dc
Series = PQ12
Maximum Speed No Load = 15mm/s
Maximum Force Lifting = 45N
Duty Cycle = 20%

The Actuonix PQ12 series micro feedback actuator is designed to push or pull a load along its full stroke length. It features an internal potentiometer that can be used to provide position feedback. It comes with limit switches that will turn off power toCan run with a DPDT switch, relay or brushed DC motor controller Available in both 6v and 12v models.
