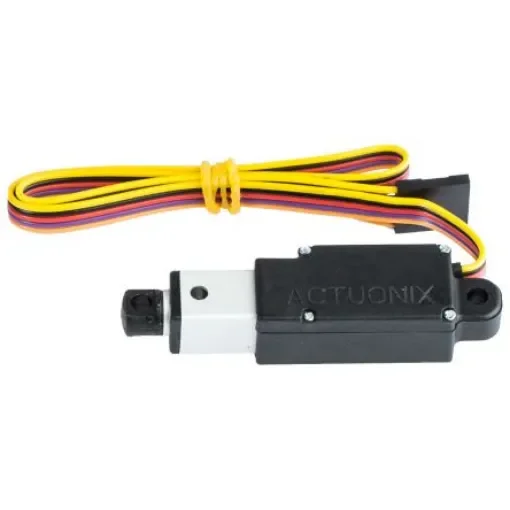

Actuonix Micro Linear Actuator, 10mm, 12V dc, 13mm/s - L12-10-100-12-P
Compact 10mm micro linear actuator with 12V DC input, ideal for robotics and automation applications.
Manufacturer part number: L12-10-100-12-P
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 10mm
Input Voltage = 12V dc
Series = L12
Maximum Speed No Load = 13mm/s
Maximum Force Lifting = 42N
Duty Cycle = 20%
IP Rating = IP54
Overall Length Closed = 102mm
Control = P - Potentiometer Positioning Feedback
L12 Micro Linear Actuators. The L12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion-enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing with awkward gears, motors, servos and linkages. The L series of miniature linear actuators are highly flexible, configurable and compact linear motion devices with an optional sophisticated on-board microcontroller. The L12 has an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. The best feature of this actuator however is the broad spectrum of configurations that are available. Option S – End of Stroke Limit Switches. The L12-S actuators have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback. The L12-P actuators do not have a built-in controller but do provide analogue position feedback. The L12-P actuator can be used as a linear servo by connecting to an external controller. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB. Using the L12-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits. Compact miniature size Simple control Low voltage Equal push/pull force Easy mounting. Application Information. Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.
