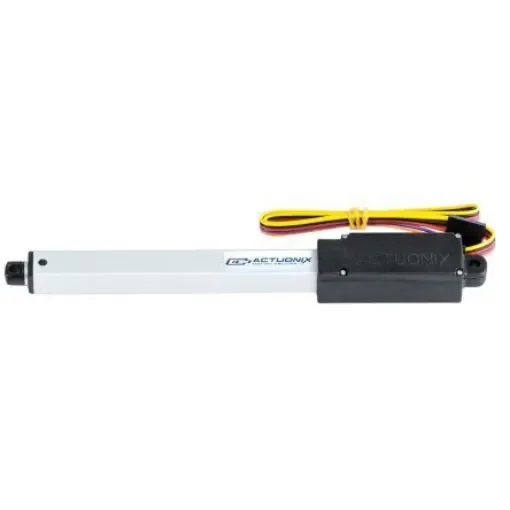

Actuonix Micro Linear Actuator, 100mm, 13mm/s - L12-100-100-6-S
Compact and reliable micro linear actuator ideal for robotics and tight spaces.
Manufacturer part number: L12-100-100-6-S
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Micro Linear Actuator
Maximum Stroke Length = 100mm
Series = L12
Maximum Speed No Load = 13mm/s
Maximum Force Lifting = 42N
Duty Cycle = 20%
IP Rating = IP54
Overall Length Closed = 152mm
Control = S - Limit Switch
The L12 series is our standard line of Micro Linear Actuator. If you need a reliable, affordable motion device, our L12-S series is for you. The L12-S comes with end-limit switches that will turn off power to the motor when the device reaches 1mm of the end of stroke. Internal diodes allow the actuator to reverse away from the limit switch. The limit switches are set at the factory and are not adjustable. The L12-S is is very compact and weighs in at 28g-56g, depending on the stroke length that you choose. Its size makes it an ideal device for robotics applications as well as other projects with tight space and weight requirements.Compact design 4 available stroke lengths 3 available gearing options Simple operation uses reversing polarity Applications Robotics Appliances Toys RC vehicles Automotive Industrial Automation
