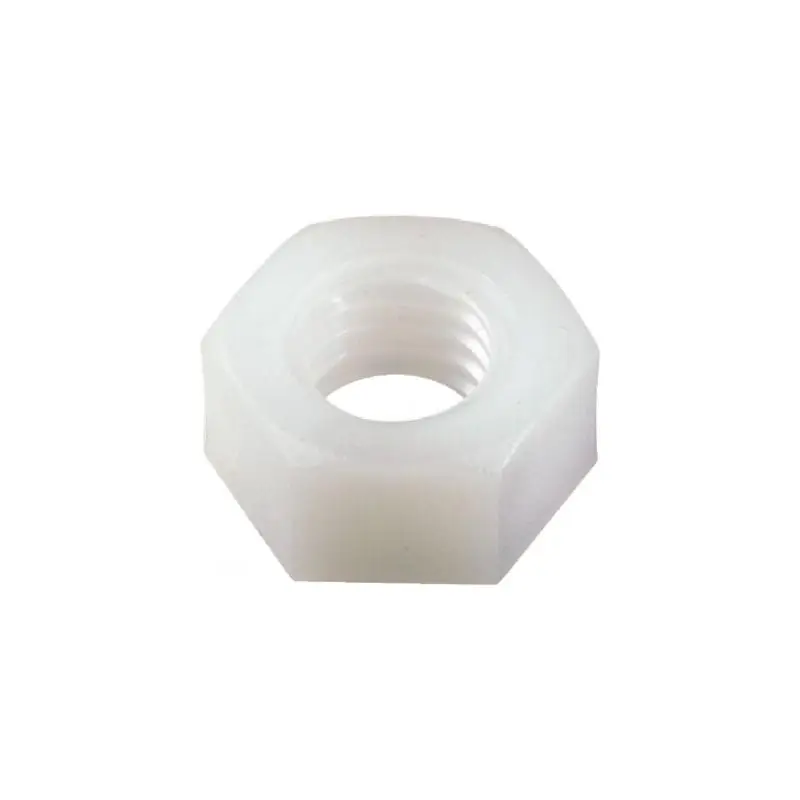

The Nylon Hexagonal Nut M Series, manufactured by Acton, is designed to provide a lightweight and corrosion-resistant fastening solution. These nuts are made from high-quality Nylon 6.6 (Polyamide PA 6.6), offering excellent mechanical properties and chemical resistance.
- Lightweight Construction: Nylon 6.6 is approximately seven times lighter than steel, making these nuts ideal for applications where weight reduction is essential.
- Corrosion Resistance: Nylon 6.6 is non-oxidizing and resistant to fresh water, seawater, and salt mist, significantly reducing the risk of corrosion and seizing.
- Chemical Resistance: These nuts exhibit good resistance to weak alkalis, aromatic and aliphatic hydrocarbons, fuels, mineral oils, and mineral lubricants. They are also suitable for alcohols, esters, ketones, ethers, and amines.
- Electrical Insulation: Nylon 6.6 provides excellent electrical insulation properties, making these nuts suitable for electrical applications.
- Temperature Resistance: The material can withstand temperatures ranging from -30°C to +100°C, with short-term exposure up to +120°C. The melting point is at 255°C.
The Nylon Hexagonal Nut M Series conforms to DIN 934 standards, which are similar to ISO 4032, NFE 25-401, and UNI 5588. The technical dimensions for each size are as follows:
| Size (M) | Thread Pitch (mm) | e (mm) | m (mm) | s (mm) |
|---|
| M3 | 0.5 | 6.01 | 2.4 | 5.5 |
| M4 | 0.7 | 7.66 | 3.2 | 7 |
| M5 | 0.8 | 8.79 | 4 | 8 |
| M6 | 1.0 | 11.05 | 5 | 10 |
| M8 | 1.25 | 14.38 | 6.5 | 13 |
| M10 | 1.5 | 18.9 | 8 | 17 |
| M12 | 1.75 | 21.1 | 10 | 19 |
These nuts are compatible with screws and bolts that conform to the corresponding DIN 934 standards. Ensure that the thread size and pitch of the screw or bolt match the specifications of the nut for a secure and reliable fastening.
