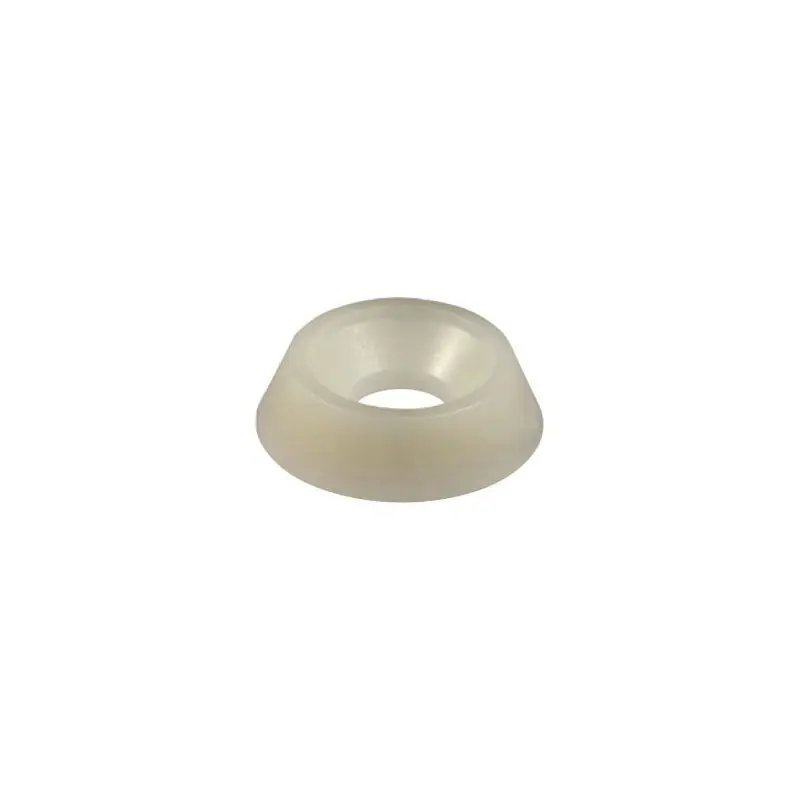

The Nylon Cup Washer, Type NFE 27619, is designed to protect and distribute the load of screws, particularly those with countersunk heads. Manufactured by Acton, these washers are made from high-quality Nylon 6.6, offering excellent electrical insulation and resistance to corrosion.
- Material: Nylon 6.6
- Standard Compliance: Meets NFE 27619 standards
- Electrical Insulation: Provides electrical insulation to prevent current flow
- Corrosion Resistance: Resistant to fresh water, seawater, and salt mist
- Temperature Range: Suitable for continuous use between -30°C and 120°C
| Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg/1000) | GTIN/EAN |
|---|
| 3 | 3 | 9.2 | 6.5 | 1.9 | 0.100 | 3604880227877 |
| 4 | 4.3 | 11.9 | 8 | 3 | 0.240 | 3604882292934 |
| 5 | 5.3 | 15.3 | 9.8 | 3.5 | 0.410 | 3604882292941 |
| 6 | 6.3 | 17 | 11.7 | 4.5 | 0.630 | 3604882292958 |
| 8 | 8 | 22.3 | 14.3 | 5.9 | 1.450 | 3604882292965 |
These washers are compatible with screws of corresponding diameters, providing effective load distribution and protection.
