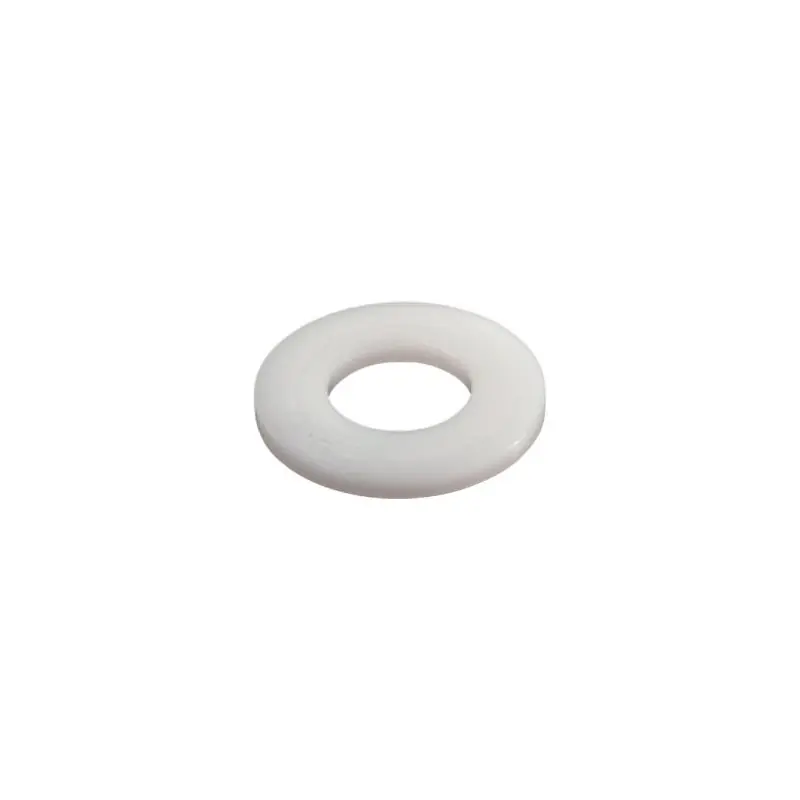

Key Features:
- Manufactured from durable Nylon 6.6, offering high thermal, mechanical, and chemical resistance.
- Meets DIN 9021 standards, ensuring compatibility with ISO 7093, NFE 25-513/25-514, and UNI 6593.
- Non-oxidizing and resistant to fresh water, seawater, and salt mist, reducing the risk of corrosion.
- Lightweight, approximately seven times lighter than steel, aiding in weight reduction.
- Excellent electrical insulation properties.
- Maximum continuous use temperature of 120°C and a minimum of -30°C.
- Melting point at 255°C.
Technical Specifications:
- Material: Nylon 6.6 (Polyamide PA 6.6)
- Standards Compliance: DIN 9021, ISO 7093, NFE 25-513/25-514, UNI 6593
Dimensions:
| Nominal Size (d) | Inner Diameter (d1) | Outer Diameter (d2) | Thickness (s) |
|---|
| 4 mm | 4.3 mm | 11.57 mm | 1 mm |
| 5 mm | 5.3 mm | 14.57 mm | 1.2 mm |
| 6 mm | 6.4 mm | 17.57 mm | 1.6 mm |
| 8 mm | 8.4 mm | 23.48 mm | 2 mm |
| 10 mm | 10.5 mm | 29.48 mm | 2.5 mm |
| 12 mm | 13 mm | 37 mm | 3 mm |
| 14 mm | 14 mm | 44 mm | 3 mm |
| 16 mm | 17 mm | 50 mm | 3 mm |
Compatibility Information:
- Suitable for applications requiring load distribution and protection against corrosion.
- Ideal for use in environments exposed to moisture, such as marine and automotive applications.
Additional Details:
- Nylon 6.6 is easily recyclable, contributing to environmental sustainability.
- The washer's design ensures a secure fit with corresponding screws, enhancing the overall fastening strength.
