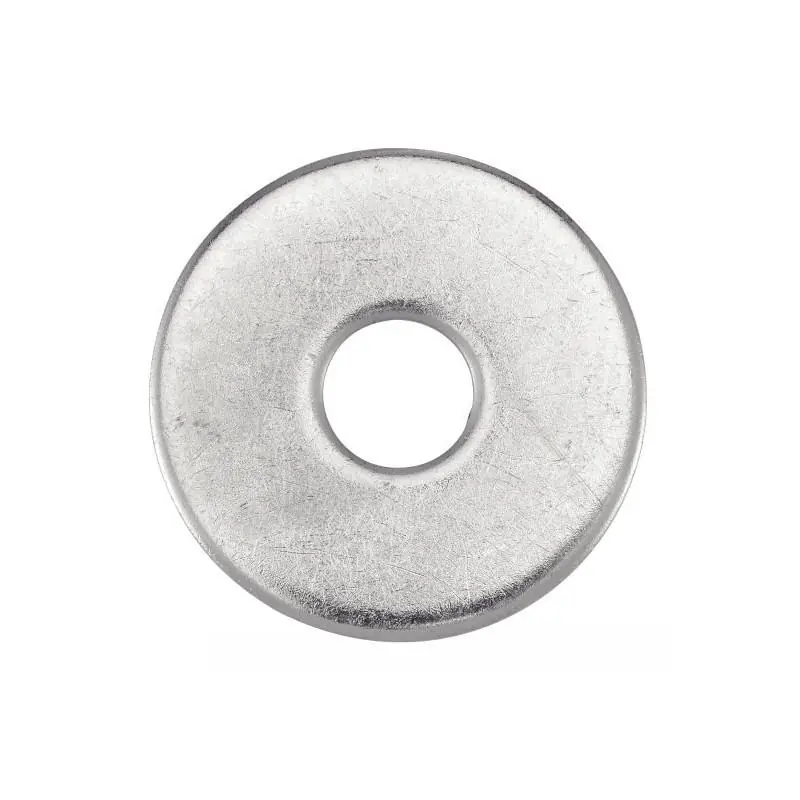

Key Features:
- Designed to distribute load evenly, enhancing the strength and stability of fastenings.
- Manufactured from stainless steel A4, offering superior corrosion resistance.
- Complies with NFE 25-513, NFE 25-514, and ISO 7089 standards, ensuring high-quality performance.
Technical Specifications:
- Material: Stainless Steel A4
- Standards: NFE 25-513, NFE 25-514, ISO 7089
- Hardness: 200 HV
Dimensions:
| Nominal Diameter (d) | Inner Diameter (d1) | Outer Diameter (d2) | Thickness (s) |
|---|
| 3 mm | 3.4 mm | 14 mm | 0.8 mm |
| 4 mm | 4.5 mm | 16 mm | 0.8 mm |
| 5 mm | 5.5 mm | 20 mm | 1.0 mm |
| 6 mm | 6.6 mm | 24 mm | 1.2 mm |
| 8 mm | 8.6 mm | 30 mm | 1.5 mm |
| 10 mm | 10.8 mm | 36 mm | 2.0 mm |
| 12 mm | 13.3 mm | 40 mm | 2.5 mm |
| 14 mm | 15.3 mm | 45 mm | 2.5 mm |
| 16 mm | 17.3 mm | 50 mm | 3.0 mm |
| 18 mm | 19.3 mm | 55 mm | 3.0 mm |
| 20 mm | 21.3 mm | 60 mm | 3.0 mm |
| 22 mm | 23.3 mm | 65 mm | 3.0 mm |
Compatibility Information:
- Suitable for applications requiring high corrosion resistance, such as marine environments, chemical processing, and food industries.
Additional Details:
- The A4 stainless steel grade is alloyed with molybdenum, enhancing its resistance to corrosion, particularly in acidic and chlorinated environments.
