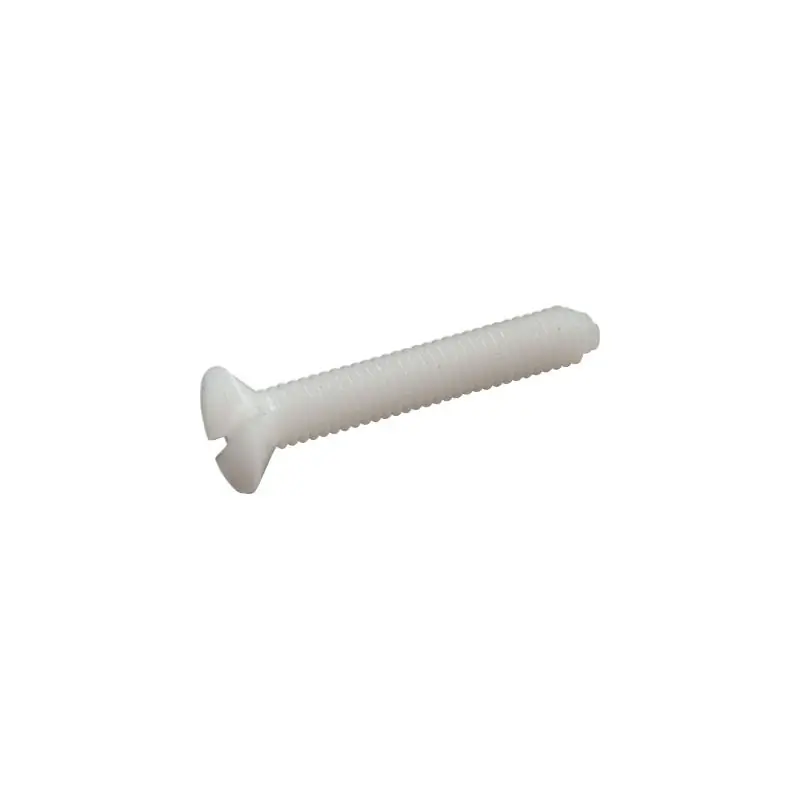

Key Features:
- Countersunk head design for flush mounting
- Slotted drive for compatibility with standard screwdrivers
- Made from Nylon 6.6 for lightweight and corrosion-resistant applications
- Conforms to DIN 963 standards, similar to ISO 2009, NFE 25-123, and UNI 6109
Technical Specifications:
- Material: Nylon 6.6 (Polyamide PA 6.6)
- Standards Compliance: DIN 963, similar to ISO 2009, NFE 25-123, UNI 6109
- Temperature Range: -30°C to 120°C
- Melting Point: 255°C
- Density: Approximately 1.14 g/cm³
- Electrical Insulation: Excellent
- Chemical Resistance: Resistant to fresh water, seawater, and salt mist
- Corrosion Resistance: Non-oxidizing
Dimensions:
- Thread Sizes (d): M4, M5, M6, M8
- Head Diameter (dk):
M4: 7.14 mm
M5: 9.2 mm
M6: 11 mm
M8: 14.5 mm
- Head Height (k):
M4: 2.2 mm
M5: 2.5 mm
M6: 3 mm
M8: 4 mm
- Thread Length (n):
M4: 1 mm
M5: 1.2 mm
M6: 1.6 mm
M8: 2 mm
- Minimum Length (t):
M4: 0.8 mm
M5: 1 mm
M6: 1.2 mm
M8: 1.6 mm
- Thread Pitch:
M4: 0.7 mm
M5: 0.8 mm
M6: 1 mm
M8: 1.25 mm
Compatibility Information:
- Suitable for applications requiring lightweight, corrosion-resistant fasteners
- Ideal for marine environments due to resistance to saltwater and mist
- Compatible with standard slotted screwdrivers
Additional Details:
- Nylon 6.6 is 7 times lighter than steel, making it a wise choice for reducing weight or mass
- Easily recyclable for chemical reuse or energy recovery
- Non-oxidizing properties enhance durability in various environments
