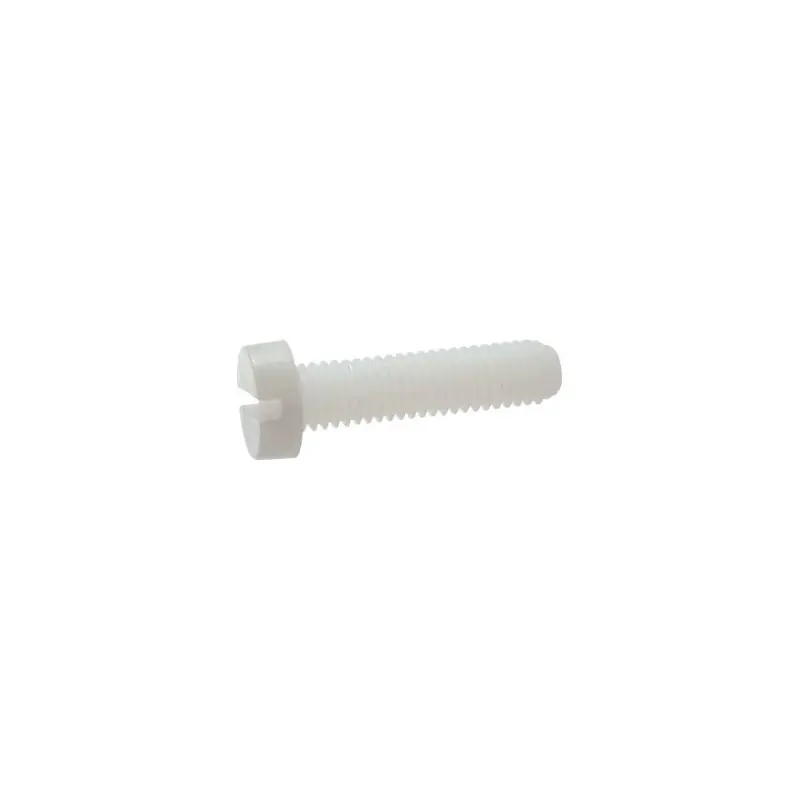

Acton - DIN 84 Nylon 6.6 Slotted Cheese Head Screws - 82500

Manufacturer: Acton
Lightweight Nylon 6.6 screws provide excellent corrosion resistance for electrical applications.
Manufacturer part number: 82500
Vendor: Deal Marine
*
*
Availability: Out of stock
€0.21
i h

DIN 84 Nylon 6.6 Slotted Cheese Head Screws are designed for applications requiring lightweight, non-corrosive, and electrically insulating fasteners. These screws conform to the DIN 84 standard and are similar to ISO 1207, NFE 25-127, and UNI 6107. They are made from Nylon 6.6, offering a combination of strength, durability, and resistance to various environmental factors.

  • Lightweight: Nylon 6.6 is approximately seven times lighter than steel, making these screws ideal for weight-sensitive applications.
  • Corrosion Resistance: Nylon 6.6 is non-oxidizing and resistant to fresh water, seawater, and salt mist, significantly reducing the risk of corrosion and seizing.
  • Electrical Insulation: Provides excellent electrical insulation properties, suitable for electrical and electronic applications.
  • Thermal and Chemical Resistance: Offers high thermal stability with a maximum continuous use temperature of 120°C and a minimum of -30°C. It also exhibits high chemical resistance, enhancing durability in various environments.
  • Recyclability: Easily recyclable for chemical reuse or energy recovery, contributing to environmental sustainability.

Technical Specifications

Diameter (d)Head Diameter (dk)Head Height (k)Thread Length (n)Minimum Thread Length (t)Pitch
M47 mm2.6 mm1.2 mm1.1 mm0.7
M58.5 mm3.3 mm1.2 mm1.3 mm0.8
M610 mm3.9 mm1.6 mm1.6 mm1.0
M813 mm5 mm2 mm2 mm1.25

Materials

Nylon 6.6 (Polyamide PA 6.6): A general-purpose polyamide known for its excellent tensile strength, high thermal stability, and resistance to various chemicals.

Dimensions

Diameter (d): Available in M4, M5, M6, and M8 sizes.

Length (L): Customizable based on application requirements.

Compatibility Information

These screws are compatible with standard pre-tapped holes or nuts matching the specified thread sizes (M4, M5, M6, M8). They are suitable for use in electrical and electronic applications where non-conductive and corrosion-resistant fasteners are required.
