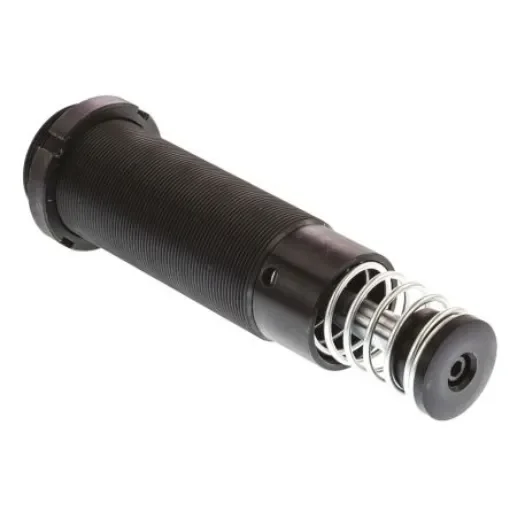

ACE Shock Absorber, MA 4550EUM, 120mm Body Length
Experience superior energy absorption with the ACE Shock Absorber, designed for heavy-duty applications.
Manufacturer part number: MA 4550EUM
Body Length = 120mm
Overall Length = 195mm
Connection Type = M45 x 1.5
Manufacturer Series = MA
Maximum Energy Capacity Per Hour = 248000Nm
Maximum Energy Capacity Per Cycle = 780Nm
Return Force = 70 to 145N
Minimum Operating Temperature = -12°C
Minimum Return Force = 70N
Maximum Operating Temperature = +70°C
Maximum Return Force = 145N
Shock Absorber. New generation of industrial shock absorbers 50% increased energy absorption capacity Front and rear adjusters Extremely long operating life Fully threaded steel outer body with Weartec - plus (harsh environment) finish Wide effective weight range - 9 to 15000kg Integrated positive stop and hardened main bearing
