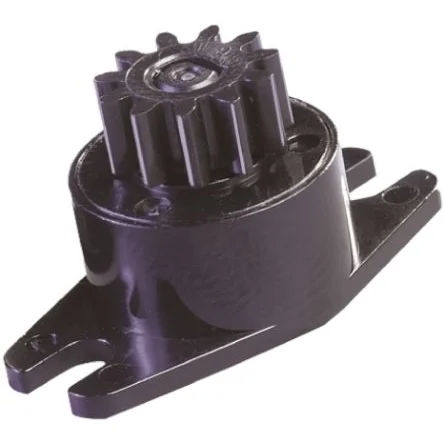

ACE FRT-C2-201-G1 +50°C 0°C 11, Tooth 8.8mm, P.C.D 2±0.6Ncm
ACE Rotary Damper ensures smooth motion and protects delicate equipment from abrupt closures.
Manufacturer part number: FRT-C2-201-G1
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Torque = 2±0.6Ncm
Number of Gear Teeth = 11
Pitch Circle Diameter = 8.8mm
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = 0°C
FRT - C2. Ace controls rotary dampers provide smooth mechanical motion damping using silicone fluid resistance. Helping to protect expensive, delicate equipment and enclosures from damage caused by abrupt panel, door or draw closure they are tough and reliable with a life of over 50,000 cycles. Examples of application include electrical and electronic loading mechanisms, instrumentation equipment and glove box doors. Damping in both directions Maintenance free Compact design with high energy absorption Max cycle Rate 10 cycles per minute Polycarbonate plastic Available with geared output
