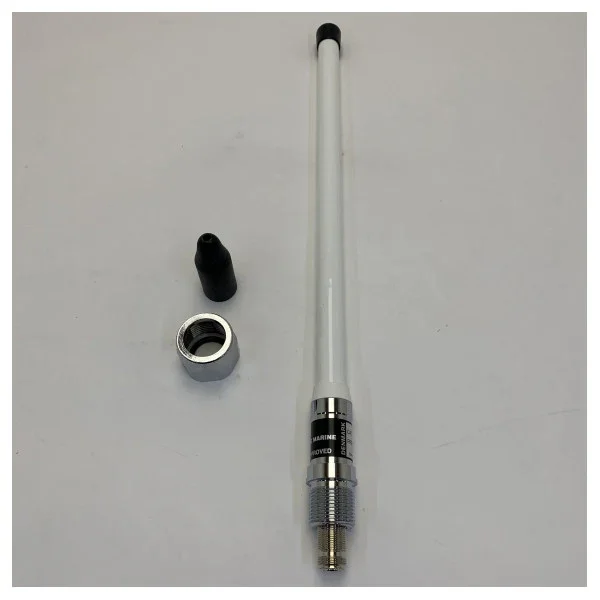

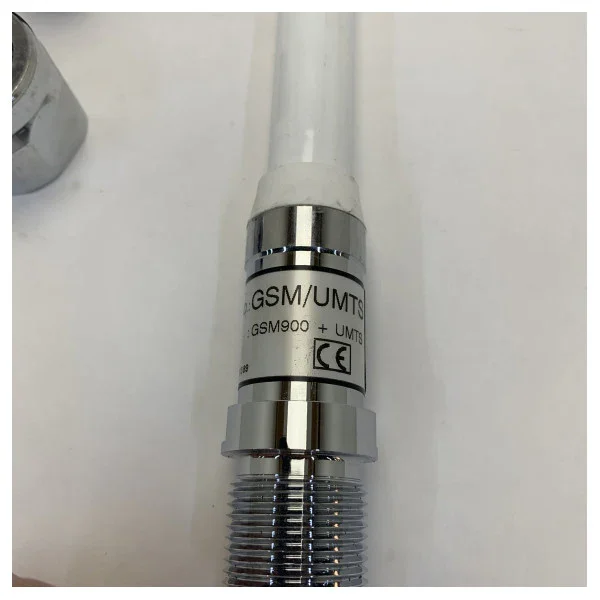

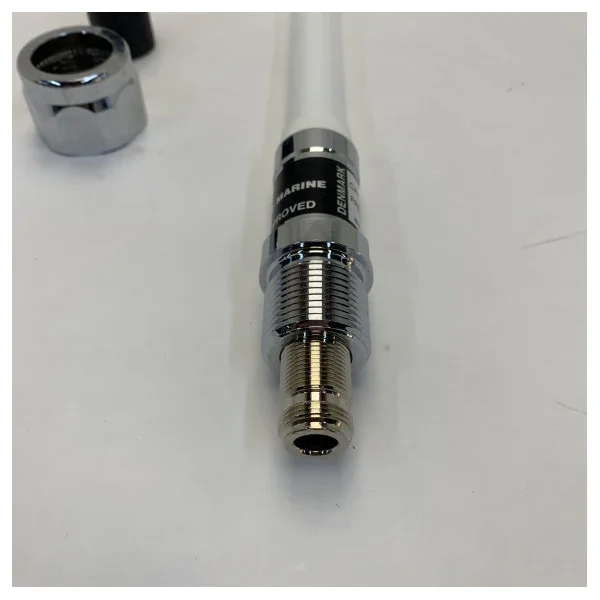

AC Antenna GSM-UMTS Mobile Antenna - Improve Your Coverage
Are you looking for a reliable solution to optimize your mobile signal? The AC Antenna GSM-UMTS Cellular Antenna, specially designed for the GSM900 and UMTS frequency bands, is the ideal choice for a stable and powerful wireless connection. This robust, omnidirectional antenna is perfect for both marine and land applications, ensuring that you stay connected everywhere, even in harsh conditions.
Features and Specifications
This antenna is an omnidirectional dipole model that delivers excellent performance over two crucial frequency bands. The radiating elements are made of brass for optimal conductivity, and the construction uses shrink technology, resulting in a 4 to 5 times stronger build than traditional antennas. Thanks to its durable design, the antenna is resistant to harsh environmental conditions.
Key Features
- Frequency Range: Covers the crucial mobile bands with A: 890.0-960.0 MHz (for GSM900) and B: 1920-2170 MHz (for UMTS/3G).
- Gain: Provides a signal gain of 3 dB (or 2.15 dBi), which is essential for better signal quality and coverage.
- Omnidirectional: Receives signals from all directions.
- Robust Construction: Made with shrink technology and has an ingress protection rating of IP66, indicating dust and water resistance.
Product Specifications
The antenna has the following technical characteristics:
- Nominal Impedance: 50 Ohm
- Maximum Input Power: 20 Watts for Band A and 10 Watts for Band B
- Dimensions (mm): Approximately Ø 120 x 185 h (diameter x height)
- Weight (kg): Approximately 0.40 kg
- Survival Wind Speed: Up to 160 km/h
- Operating Temperature: From -40°C to +60°C
- Included: A nut (N239F) is included for easy installation on ISO 228/1-G1 fittings.
