AC Antenna FAME3 Fibre Optic Omnidirectional Antenna
The AC Antenna FAME3 is a high-quality, multifunctional antenna designed for the demanding maritime sector and outdoor installations. This fibre optic antenna provides excellent reception for a wide range of signals, including DAB, DAB+, AM and FM. Thanks to the omnidirectional design, the antenna receives signals from all directions (360 degrees), ensuring you always have a stable connection without having to manually adjust the antenna.
Durability and Performance
The FAME3 is made from high-quality fibre optic, making the antenna extremely resistant to corrosion, UV radiation, and harsh weather conditions at sea. The internal components are protected by a robust construction that absorbs vibrations and shocks. This makes it the ideal choice for boat owners and professionals looking for a reliable solution for radio reception.
Key Features
- Wide Frequency Range: Supports both analogue AM/FM signals and digital DAB and DAB+ broadcasts.
- Omnidirectional Design: Consistent reception from any angle without dead spots.
- Marine Quality: Fully weather-resistant fibre optic design for a long lifespan in salty environments.
- Easy Installation: Suitable for standard marine mounting brackets with a 1 inch 14TPI thread.
- Passive Operation: No external power required for basic reception.
Technical Specifications
The AC Antenna FAME3 combines advanced technology with a compact design. Below are the key technical details:

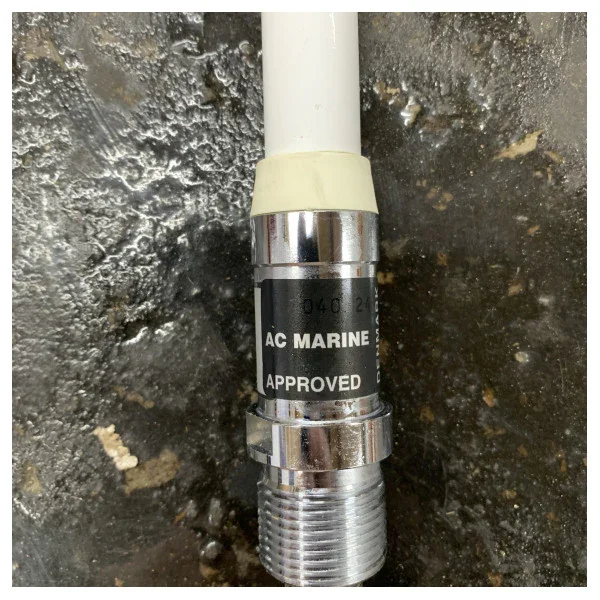

- Material: High-quality white fibre optic with a chrome-plated brass base.
- AM Frequency Range: 0.15 to 30 MHz.
- FM Frequency Range: 88 to 108 MHz.
- DAB/DAB+ Frequency Range: 174 to 240 MHz.
- Polarization: Vertical.

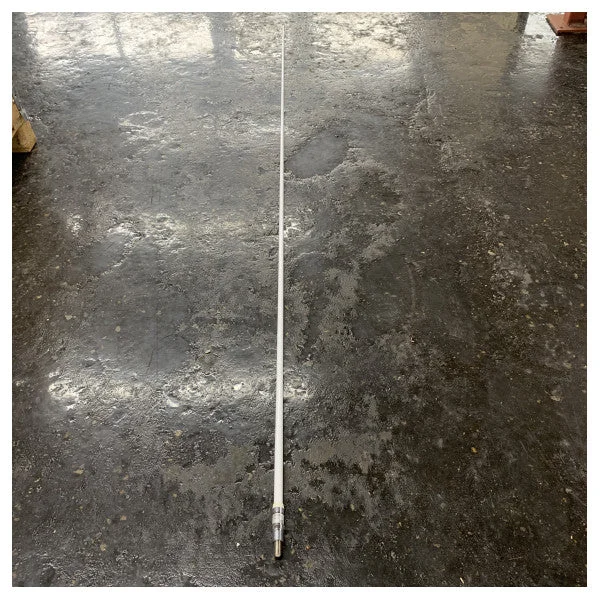

- Length: Approximately 1.1 meters (3.8 feet).
- Weight: 0.5 kg.

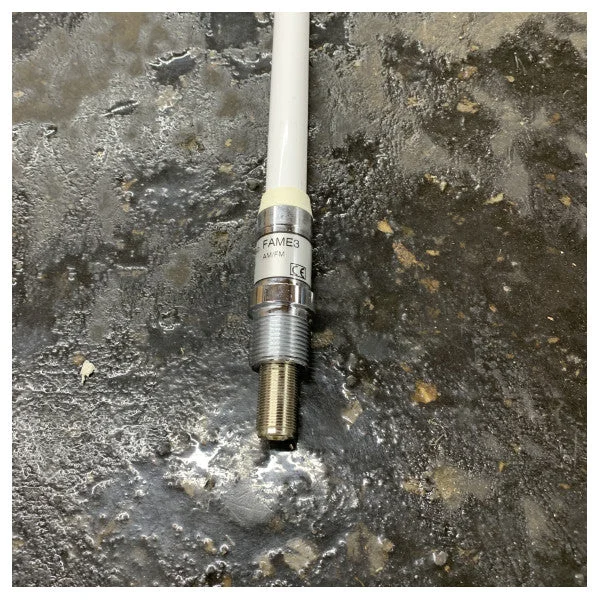

- Mounting: Internal 1 inch 14TPI thread for standard marine supports.
- Connection: Supplied with an integrated junction box for coaxial cable (RG58 or similar).
- Temperature Range: Suitable for use between minus 40 and plus 60 degrees Celsius.
