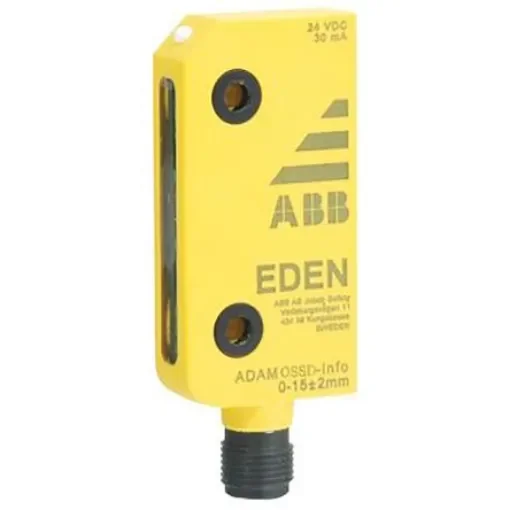

ABB OSSD Series Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, M12 - 2TLA020051R5600 Adam OSSD-Reset M12-5

IEC/EN 61508:2010 SIL3 PFHD 4.5 x 10-9, EN 62061:2005 SIL3, EN ISO 13849-1:2008 PL e/Cat. 4, EN 14119:2013 Type 4. CE, cULus, TUV. Stock nos. ; 917-6409 917-6409 and ; 917-6402 917-6402 have an information output and ; 917-6406 917-6406 and ; 917-6415 917-6415 monitor the reset function and manage the reset lamp. ABB Eden OSSD Non Contact Safety Switches. The Eden OSSD from ABB is a coded non-contact safety switch. A PLe safety level can be achieved with only one switch per guard and with up to 30 switches connected in series. Installation time is reduced thanks to a compact design, flexible mounting and a large mounting tolerance. The Eden OSSD increases productivity using an extensive indication and information output that enables troubleshooting and reduces downtime. It also has a large sensing distance for improved tolerance to vibrations and to minimise the risk of involuntary stops. The safety switch has an IP69K protection class and a wide operating temperature range making it ideal for extreme environments. Features and Benefits. Non-contact detection, 0-15 mm OSSD outputs and inputs for serial connection High level coded Local reset function Protection class IP69K. Applications. The Eden OSSD non-contact safety switch is suitable for use on doors and hatches as well as position control and sector detection.
