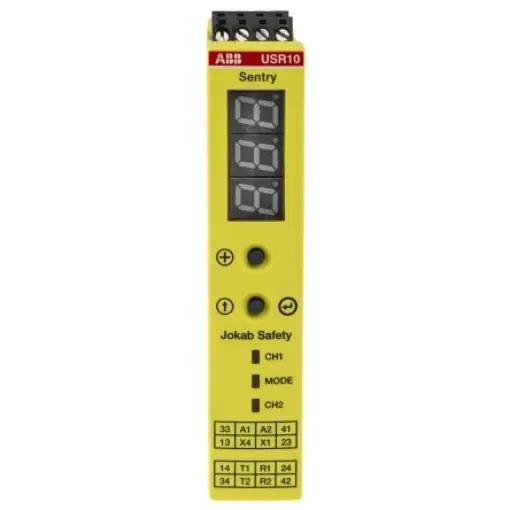

ABB Jokab Sentry USR10 Time Delay Safety Relay, 24V dc, Dual-Channel, 4 Safety Contacts - 2TLA010070R0000 Sentry USR10 24VDC

Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 4
Function = Time Delay
Auxiliary Contacts = 3
Reset Method = Multi-Reset
Range = Sentry
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Configurable = Yes
Series = USR10mm
Performance Level = emm

ABB Jokab Safety ContactThe ABB Jokab USR10 is a universal safety relay timer with 3NO+1NC delayable contacts and a 24VDC power supply. This is used with safety devices with contacts 1 and 2 channels, safety devices with OSSD outputs and safety edges/bumpers.Features and Benefits• 0-999 seconds timer functions with a better accuracy than 1%: OFF-delay, ON-delay, time bypass and time reset • Compact in dimension 120mmx22.5mmx120mm • Configurable and troubleshooting with display • Custom configuration can be protected by password • Reset function is selectable between automatic and manual • Screw-type terminal for electrical connectionsApplications• Industrial automation • Pressure sensitive mats • Safety gates • Two-hand controlsCertifications• CE certified • CUL listed • PL ISO 13849-1 • TUV
