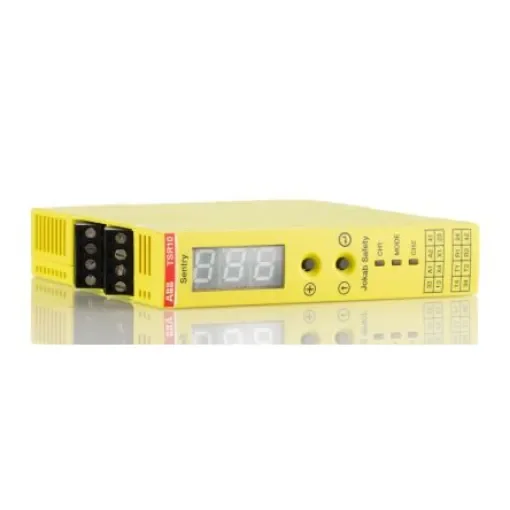

ABB Jokab Sentry TSR10 Time Delay Safety Relay, 24V dc, Dual-Channel, 4 Safety Contacts - 2TLA010060R0000 Sentry TSR10 24VDC

Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 4
Function = Time Delay
Auxiliary Contacts = 3
Reset Method = Multi-Reset
Range = Sentry
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Configurable = Yes
Series = TSR10mm
Performance Level = emm

TSR10 is a safety relay/safety timer with delayable relay outputs, 3 NO+ 1 NC, and a +24 VDC power supply.TSR10 offers 0-999 seconds timer functions with a better accuracy than 1%: OFF-delay, ON-delay, Time bypass and Time reset.A display on its front facilitate configuration and troubleshooting by displaying error codes and error log. A custom configuration can be protected by password.Automatic reset function only.
