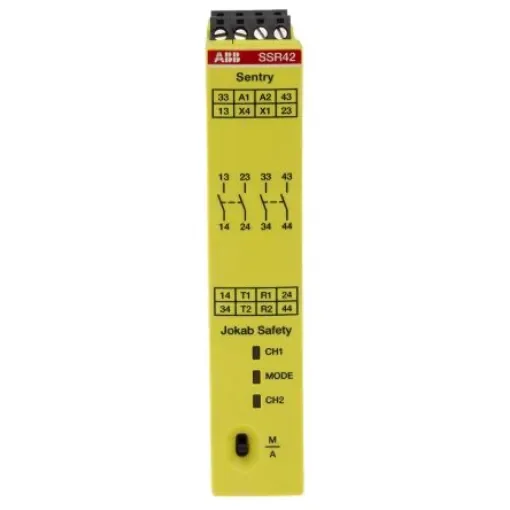

ABB Jokab Sentry SSR42 Time Delay Safety Relay, 24V dc, Dual-Channel, 4 Safety Contacts - 2TLA010053R0400 Sentry SSR42 24VDC

Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 4
Function = Time Delay
Auxiliary Contacts = 4
Reset Method = Multi-Reset
Range = Sentry
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Configurable = Yes
Series = SSR42mm
Performance Level = emm

ABB Jokab Safety ContactThe ABB Jokab SSR42 is a safety relay with 2NO+2 delayed NO contacts and a 24VDC power supply. This is used with safety devices with contacts 1 and 2 channels with equivalent contacts and safety devices with OSSD outputs.Features and Benefits• Compact in dimension 120mmx22.5mmx120mm • Screw-type terminal for electrical connections • The reset function (automatic or manual) is set with a switch on the front • The two delayed NO relay outputs have an OFF-delay time of 1.5sApplications• Industrial automation • Pressure sensitive mats • Safety gates • Two-hand controlsCertifications• CE certified • CUL listed • PL ISO 13849-1 • TUV
