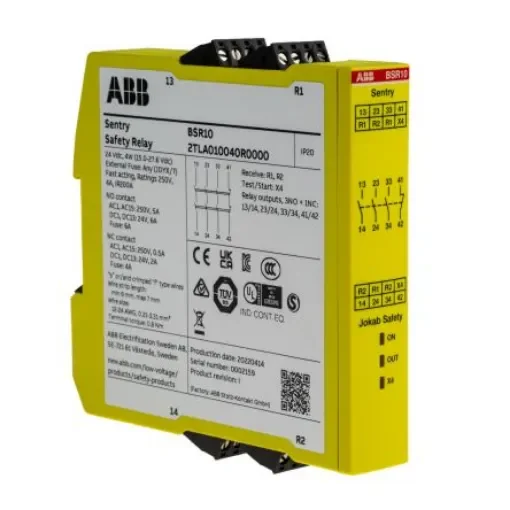

ABB Jokab Sentry BSR10 Emergency Stop Safety Relay, 24V dc, Single Channel, 4 Safety Contacts - 2TLA010040R0000 Sentry BSR10 24VDC

Manufacturer: ABB Jokab

Ensure safety with the ABB Jokab Sentry BSR10 Emergency Stop Relay, featuring 4 safety contacts and a 24V DC supply.

Manufacturer part number: 2TLA010040R0000 Sentry BSR10 24VDC

Vendor: YACHTNEEDS-RS

€166.64

Qty:

i h

Ships to: France

Supply Voltage = 24V dc
Number of Channels = 1
Safety Contacts = 4
Function = Emergency Stop
Auxiliary Contacts = 3
Reset Method = Multi-Reset
Range = Sentry
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Configurable = Yes
Depth = 120mm
Length = 22.5mm

BSR10 is a safety/expansion relay with relay outputs, 3 NO + 1 NC, and a +24 VDC supply voltage. BSR10 is designed to connect safety devices, such as emergency stops, directly in the voltage supply circuit of the relay.BSR10 is also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs.
