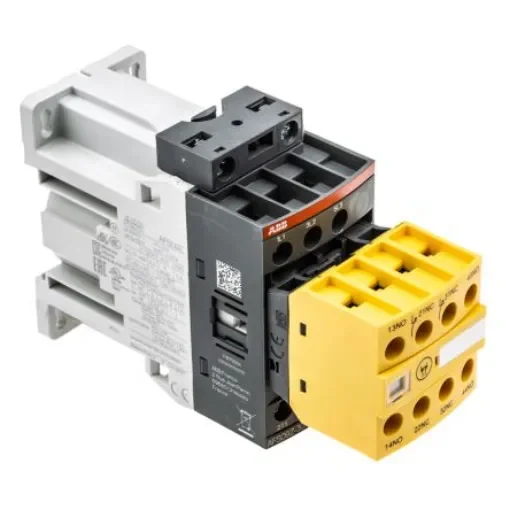

ABB Jokab AFS09Z-30-22-30 AFS Contactor, 24 V dc Coil, 3-Pole, 25 A, 3NO, 600 V ac - 1SBL136082R3022 AFS09Z-30-22-30

Coil Voltage = 24 V dc
Number of Poles = 3
Contact Voltage Rating = 600 V ac
Contact Current Rating = 25 A
Series = AFS
Function = Safety
Normal State Configuration = 3NO
Number Of Auxiliary Contacts = 4
Terminal Type = Screw
Length = 45mm
Depth = 80mm
Minimum Operating Temperature = -40 °C, -25°C

AFS 3P Safety RelayThe ABB Jokab safety relay is a 3-pole and throw configuration relay. It has a coil voltage of 24VDC, contact current rating 25A and contact voltage rating 600VAC. It has a low holding consumption up to 1.7W, which reduces the panel energy consumption. It has a front marked symbol that guarantees the right contactor status.Features and Benefits• Built-in surge suppression • Control circuit with an electronic coil interface • Dedicated 24VDC for direct control by PLC output • Front-mounted auxiliary contact block • Minimum switching capacity is 12V/3mA • Mirror and mechanically linked contacts • Protective cover to prevent manual operationApplications• Controlling circuits • Machine safety applications • Monitoring circuitsCertifications• CSA C22.2 N°14 • EN 60947-1 / 60947-4-1 • IEC 60947-1 / 60947-4-1 • UL 508
