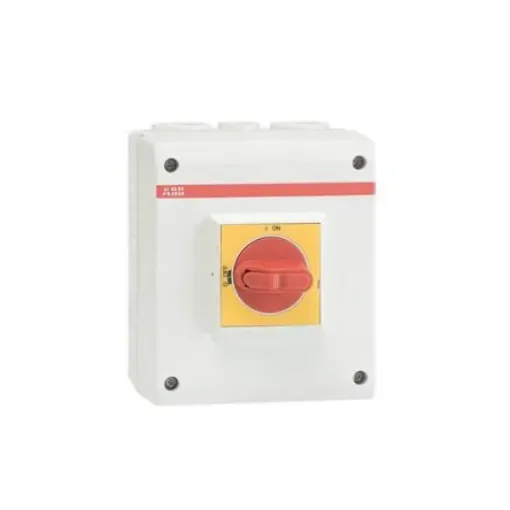

ABB 4P Pole Isolator Switch - 16A Maximum Current, IP65 - 1SCA022459R6510
Reliable ABB 4P Pole Isolator Switch with IP65 rating, perfect for indoor and outdoor use.
Manufacturer part number: 1SCA022459R6510
GTIN: 6417019143187
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Poles = 4P
Maximum Current = 16A
IP Rating = IP65
Voltage Rating = 750V
Electrical Phase = 4
Accepts Padlocks = Yes
Auxiliary Contacts Available = Yes
Length = 130mm
Width = 60mm
Depth = 150mm
The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets, and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallel cables and one control cable, both from top and bottom. The handle is pad lockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographic etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
