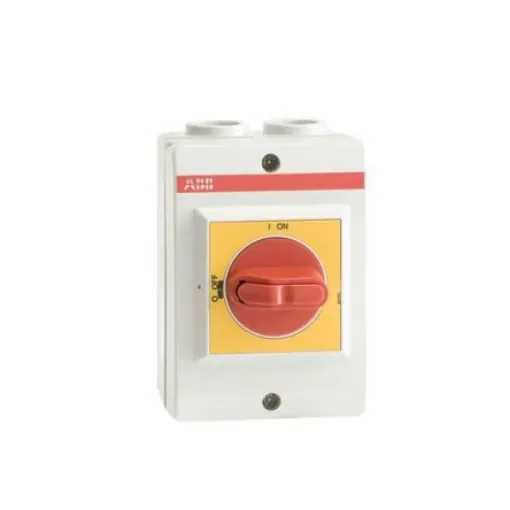

ABB 3P Pole Isolator Switch - 16A Maximum Current, IP65 - 1SCA022401R3350

Number of Poles = 3P
Maximum Current = 16A
IP Rating = IP65
Voltage Rating = 750V
Electrical Phase = 3
Accepts Padlocks = Yes
Auxiliary Contacts Available = Yes
Length = 85mm
Width = 60mm
Depth = 120mm

The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets, and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallel cables, both from top and bottom. The handle is pad lockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographic etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. Two membrane glands and two pull stoppers included.
