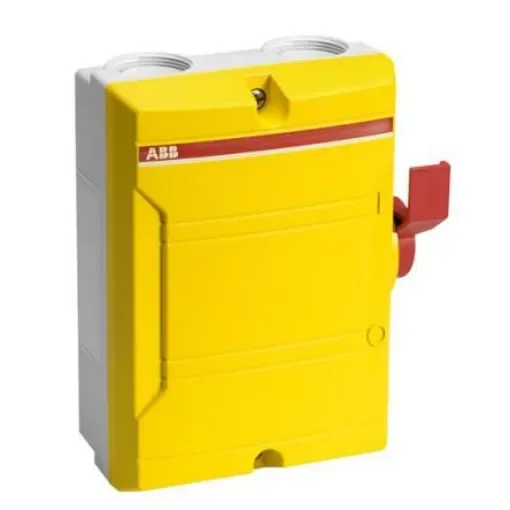

ABB 3P+N Pole Isolator Switch - 25A Maximum Current, 7.5kW Power Rating, IP54, IP65 - 2CMA142441R1000
Reliable ABB 3P+N Pole Isolator Switch with 25A capacity, ideal for both indoor and outdoor use.
Manufacturer part number: 2CMA142441R1000
GTIN: 7392696424417
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Poles = 3P+N
Maximum Current = 25A
IP Rating = IP54, IP65
Power Rating = 7.5kW
Voltage Rating = 690V
Electrical Phase = 3
Accepts Padlocks = Yes
Auxiliary Contacts Available = Yes
Length = 111mm
Width = 60mm
Depth = 130mm
The enclosure of the ABBs side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets, and hence built for outdoor and indoor use. The enclosure is available in different colours, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallel cables, both from top and bottom. Membrane grommets are included. The handle is pad lockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
