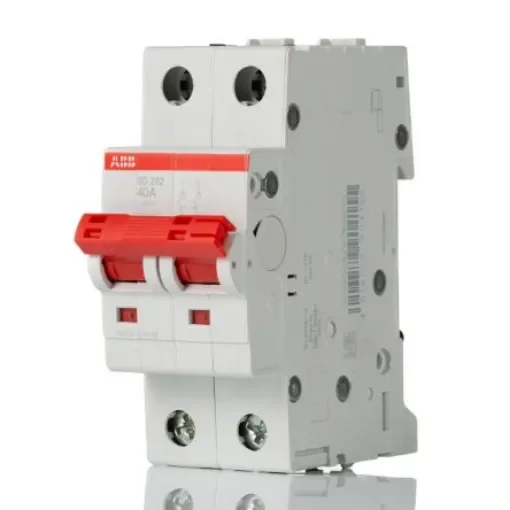

ABB 2P Pole Isolator Switch - 40A Maximum Current - 2CDD282101R0040 SD202/40
Ensure safety with the ABB 2P Pole Isolator Switch, designed for reliable disconnection at 40A.
Manufacturer part number: 2CDD282101R0040 SD202/40
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Number of Poles = 2P
Maximum Current = 40A
Voltage Rating = 125 V dc, 440V ac
Accepts Padlocks = Yes
Range = Pro M Compact
Length = 35mm
Width = 69mm
Depth = 88mm
Terminal Type = Screw°C
The SD 200 extends the proven System pro M compact ® series by a new range of switch disconnectors which provides state-of-the-art safety and comfort. The series is available with 1 to 4 poles with rated currents from 16 to 63 A and provides disconnection properties. With a rated voltage of 253/440 V AC, a rated conditional short-circuit current of 25 kA, terminals with protection from misconnection, a “;Real CPI”; contact position indication, as well as full compatibility with all MCB accessories, SD 200 is unique in its field of application.Clear contact position indication in red/green (“;Real CPI”;) Highest performance at an increased voltage level 35 mm² cylinder lift terminal with 2 terminal openings Consistent design to other System pro M DIN rail products Cross wiring with MCBs or RCDs using busbars PS Durable device identification due to laser labeling Captive screws with recessed head
